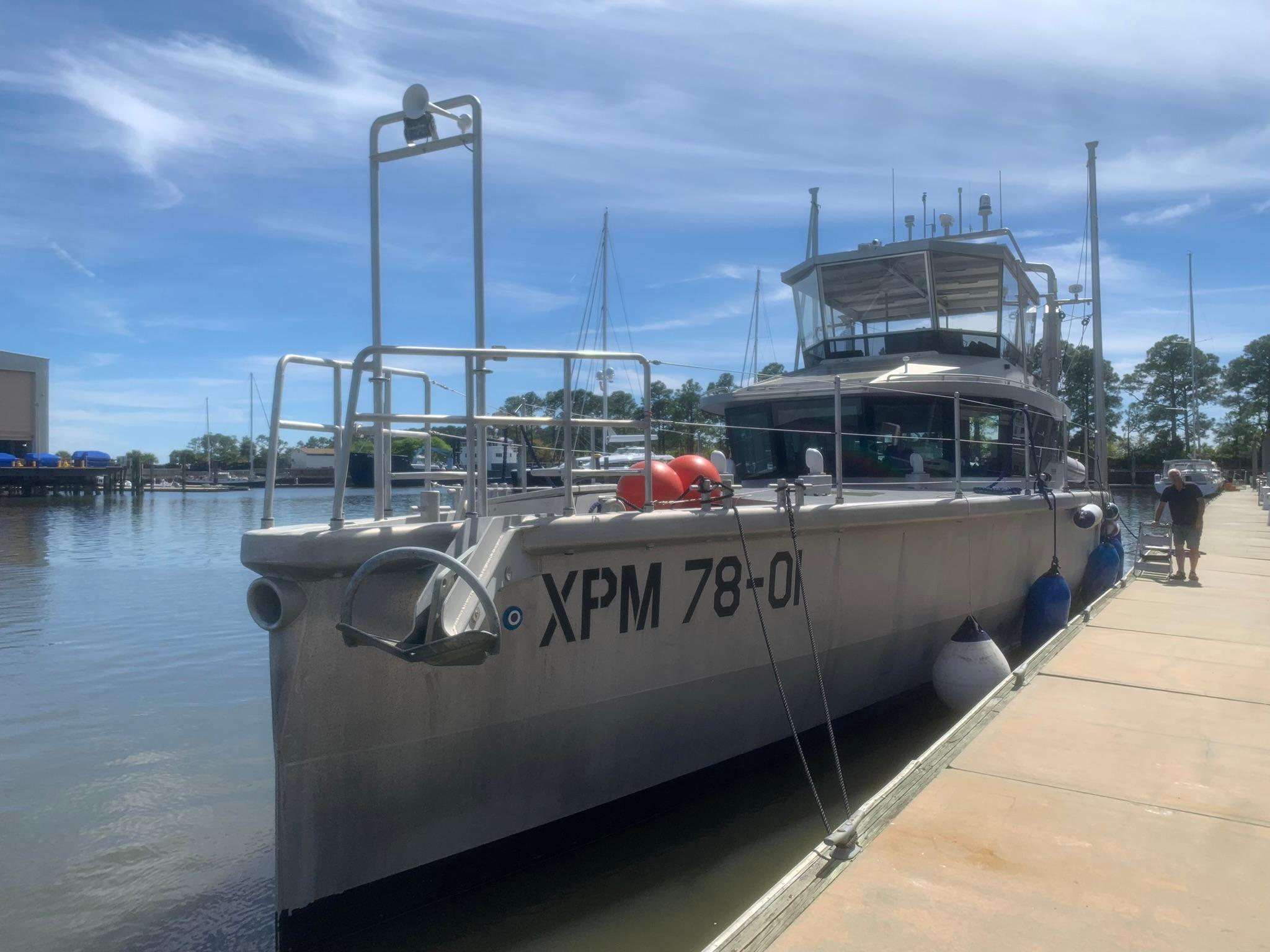

Naval Yachts XPM 78

Omschrijving

Price dropped by $200.000 to $1.490.000.

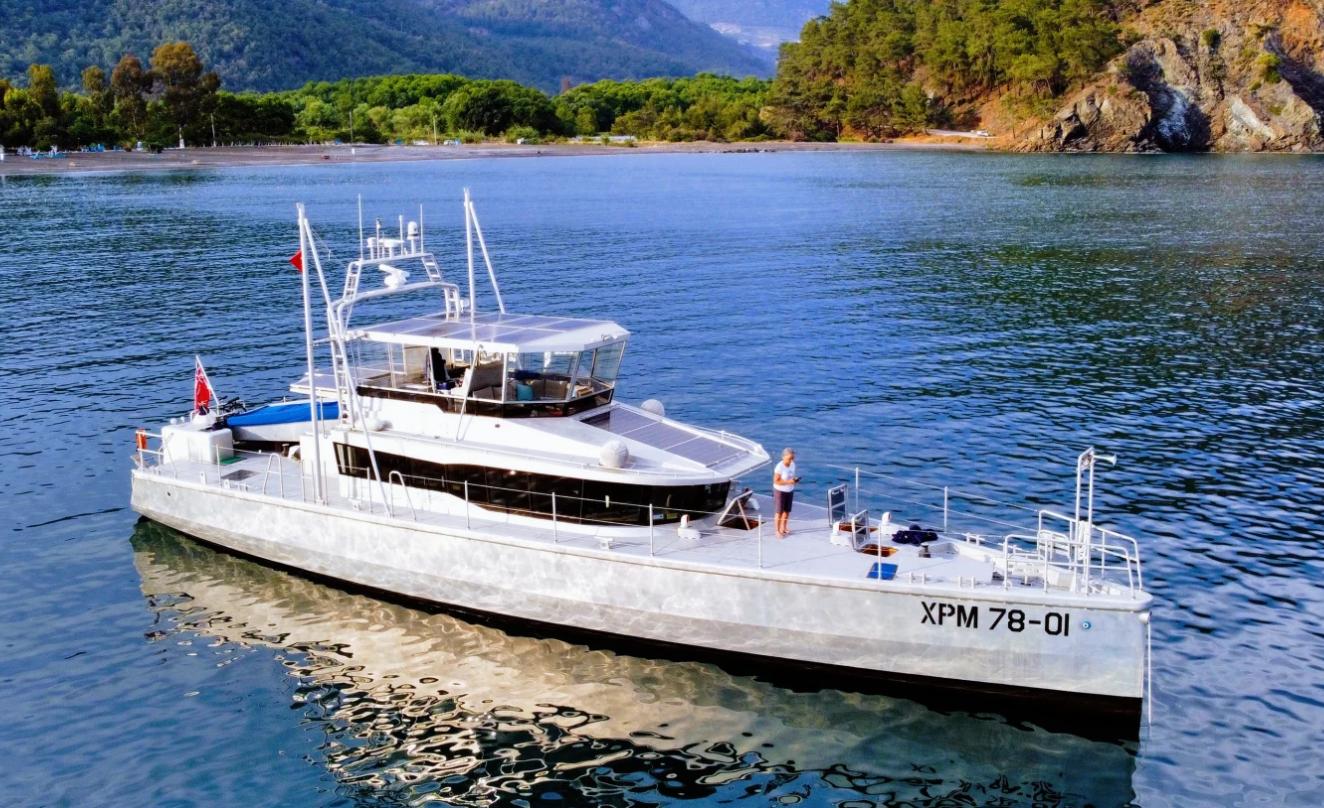

This explorer yacht is built to explore the world from artic to the tropics in full safety and luxury. A single couple can operate this exploration vessel comfortably and entertain multiple guests.

Build for the toughest conditions, it convergence the highest quality and most innovative technologies with simplicity and practicality to ensure the vessel can be operated or fixed independently. The yacht provides unique safety features and has self righting capabilities in case of complete inversion.

This yacht had very low use (∼1.500 hours) and crossed the Atlantic from the Mediterranean to the Caribbean. With a range of ∼7.000 NM., she is always ready for the next ocean crossing.

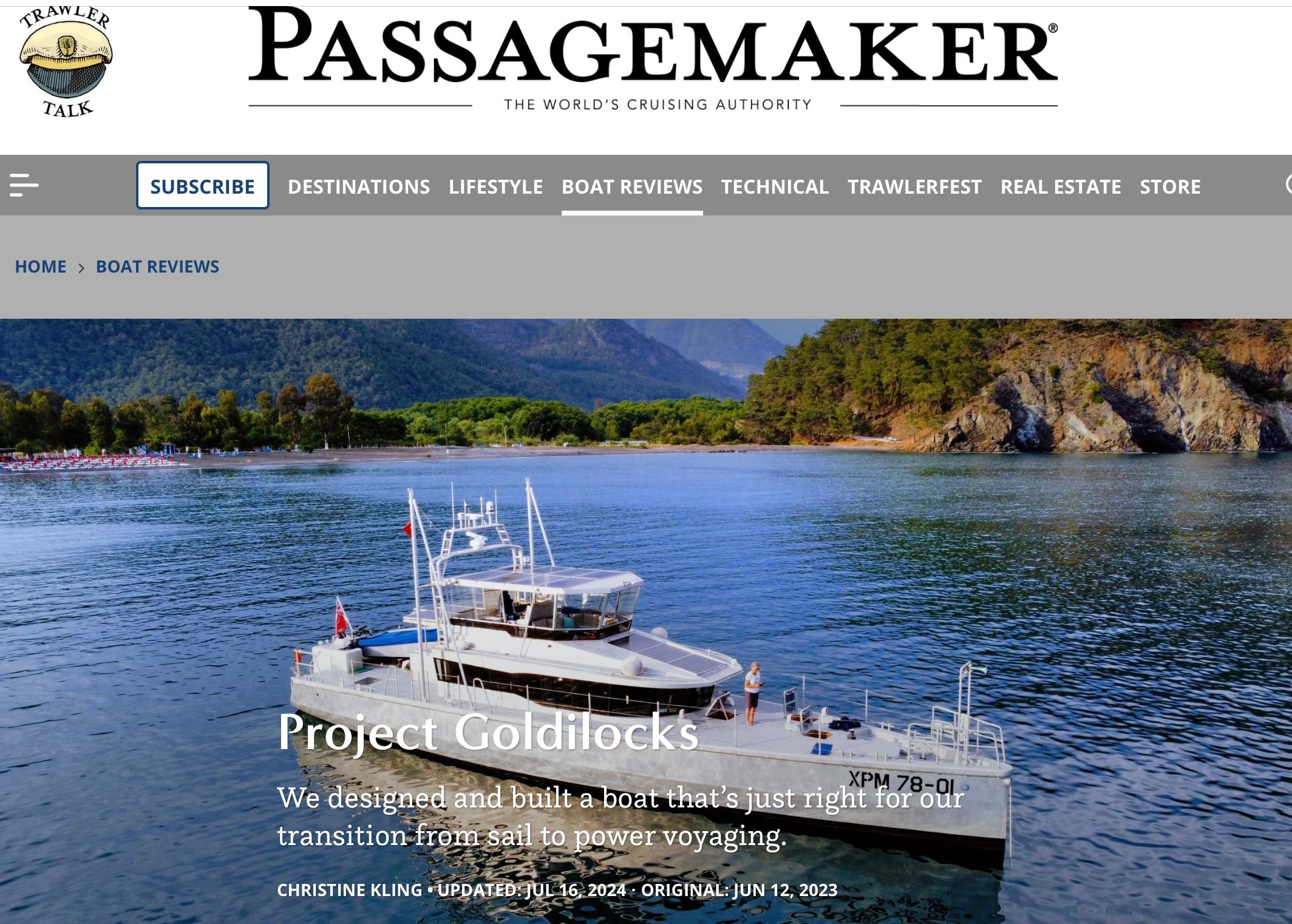

The XPM series is inspired by the legendary FPB series of Steve Dashew and aims to go beyond. Passagemaker magazine honored it with a frontpage article. Please let yourself be convinced by the extensive specs listed below.

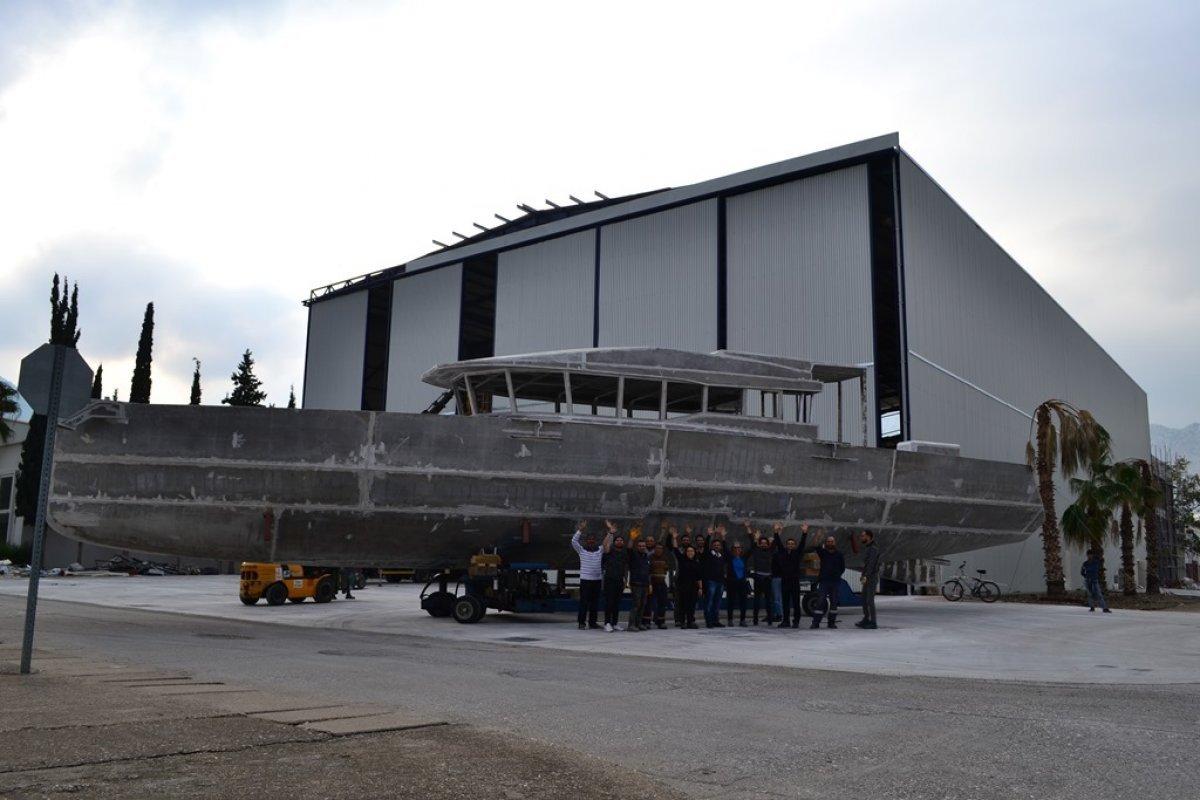

BUILDER:    Naval Yachts, Antalya

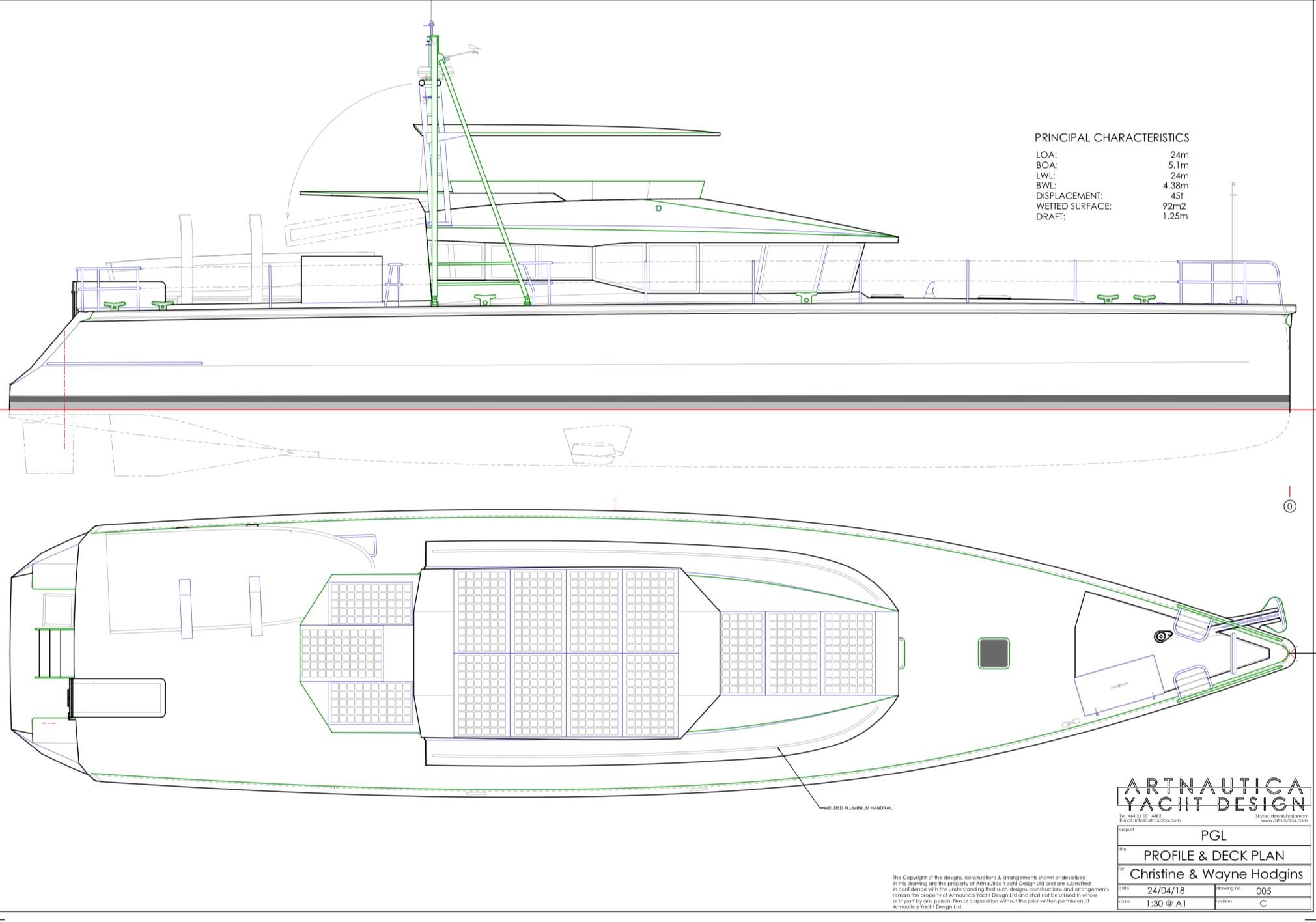

DESIGNER:  Dennis Harjaama, Artnautica Yacht Design

REGISTERED IN:    Bailiwick of Jersey, Red Ensign Group

LAUNCHED:    February, 2021

OVERALL DIMENSIONS

REGISTERED LENGTH:    22.4m / 73.6’  (MCA/Jersey)

LOA:    23.8m / 78.2’

LWL:    23.8m / 78.2’

MAX BEAM:    5.13m / 16.8’

DRAFT:    1.3m / 4.2’

MAX AIR DRAFT Passage Mode (top of Paravane booms):    8.3m/27.1’

MIN AIR DRAFT Canal Mode (Paravanes, SkyBridge Roof & Arch lowered):    4.6m/15’

DISPLACEMENT (w/ half tanks):    41,000 kg / 90,000 lbs

GROSS TONNAGE (calculated by Bureau Veritas):  66.8 tons

NET TONNAGE (calculated by Bureau Veritas):    50.12 tons

PERFORMANCE

AVERAGE CRUISING SPEED:    10.5 kts

MAX. SPEED:  12 kts

RANGE @10KTS typical sea conditions w/ 10% fuel reserve:    6800 - 7500+ nm

FUEL CAPACITY:    14,617 L / 3861 USG

WATER CAPACITY:  7091 L / 1873 USG

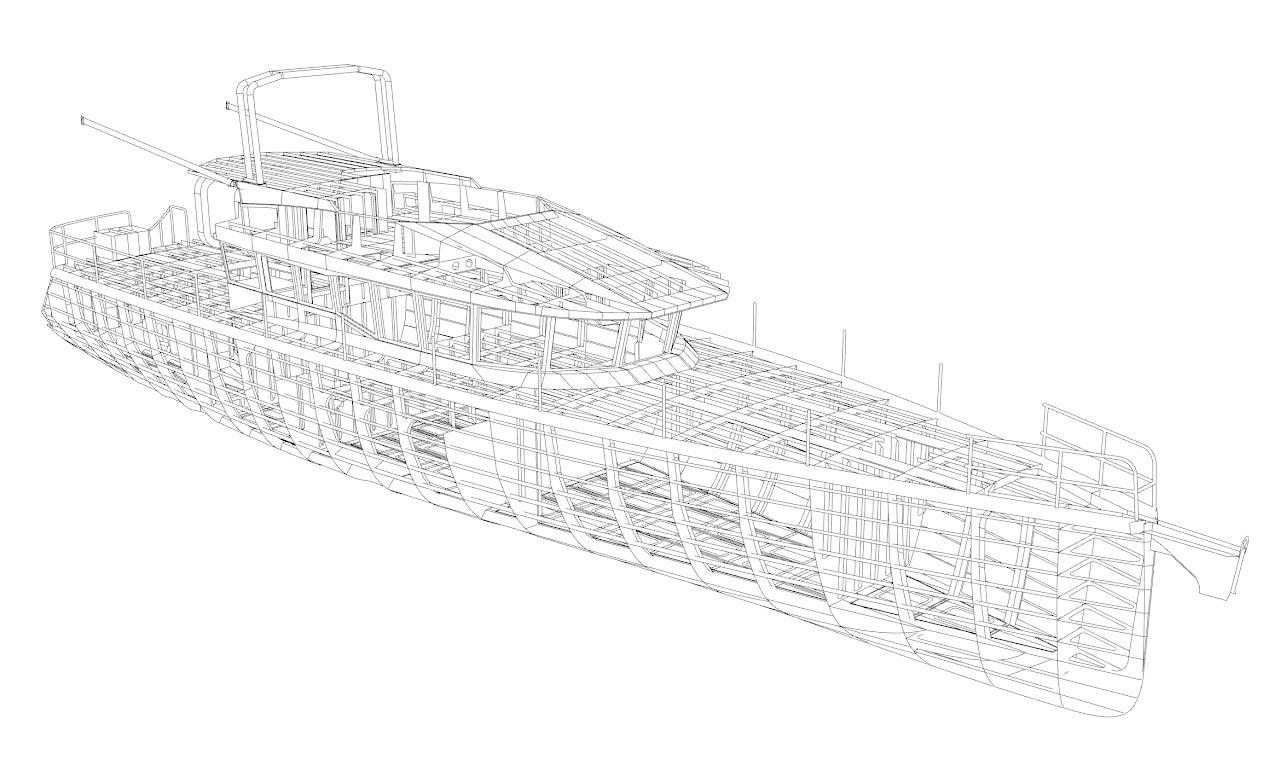

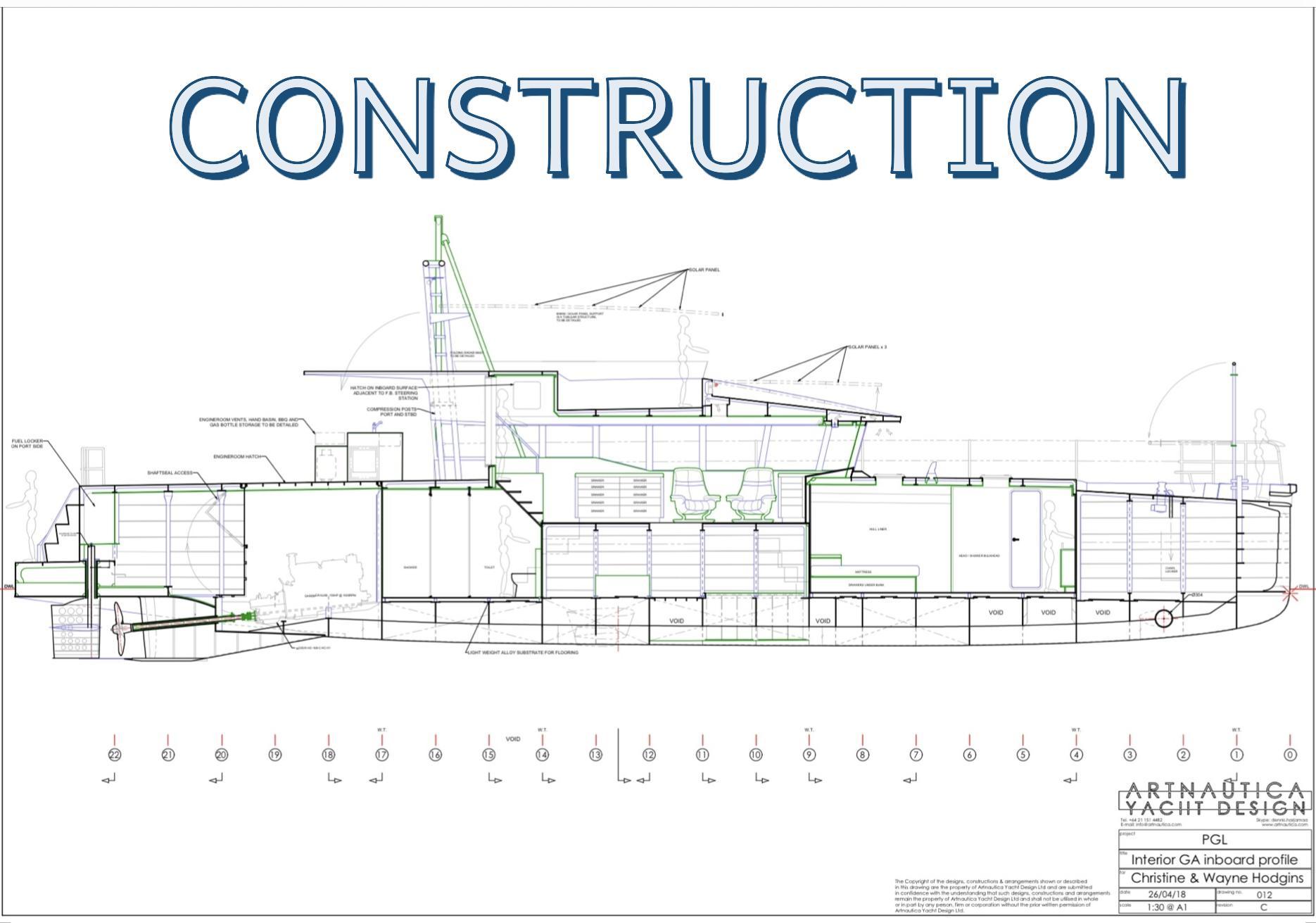

HULL CONSTRUCTION

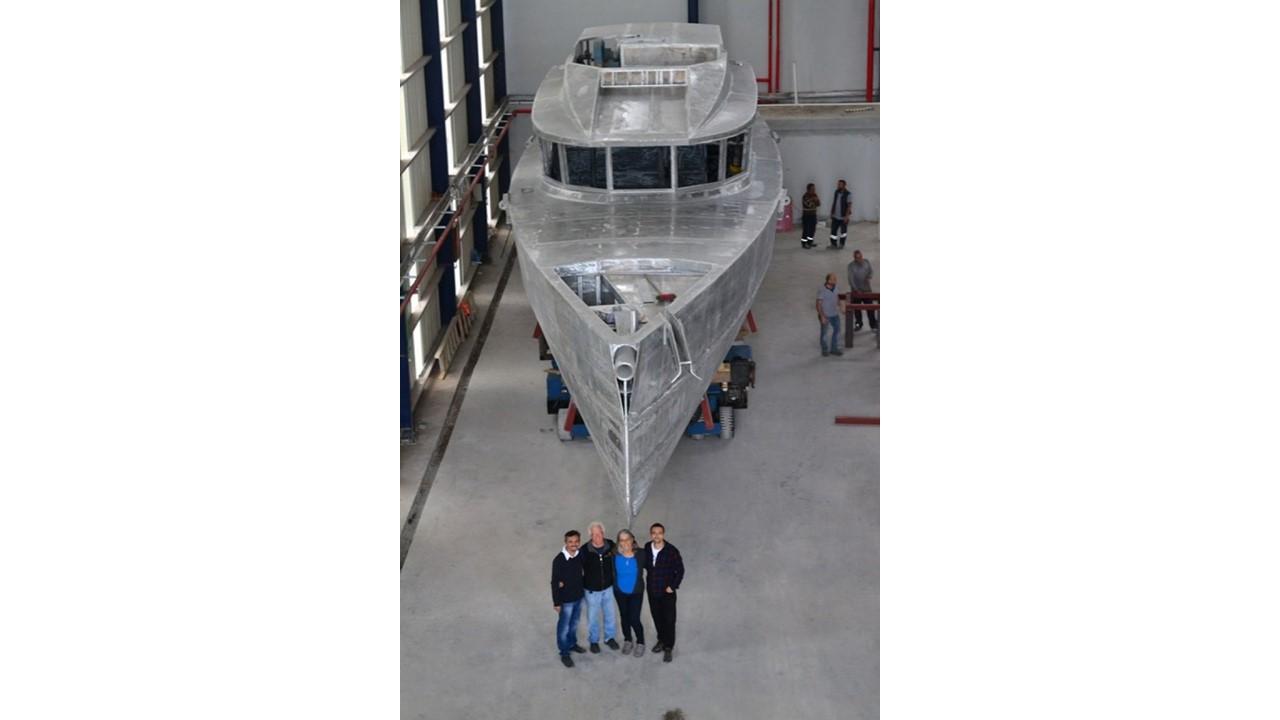

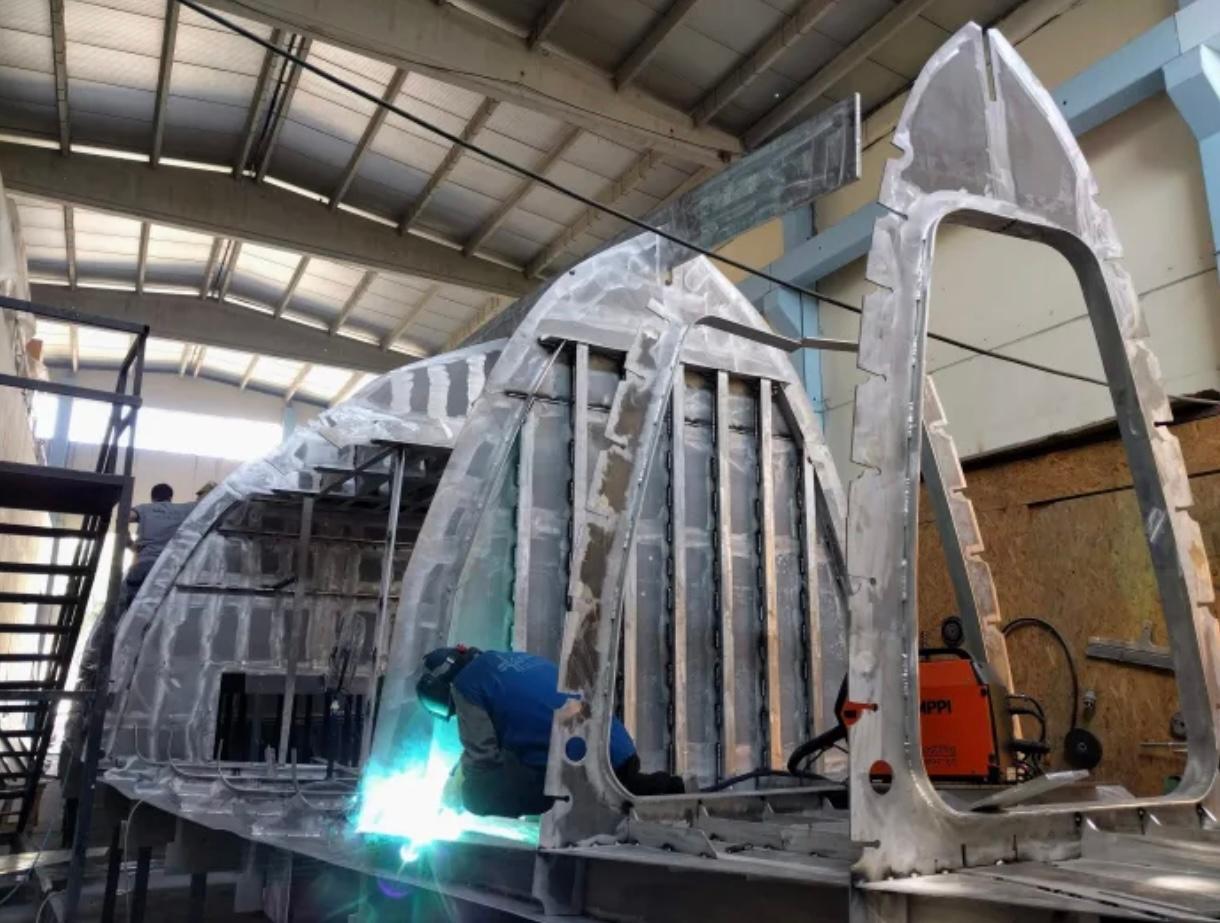

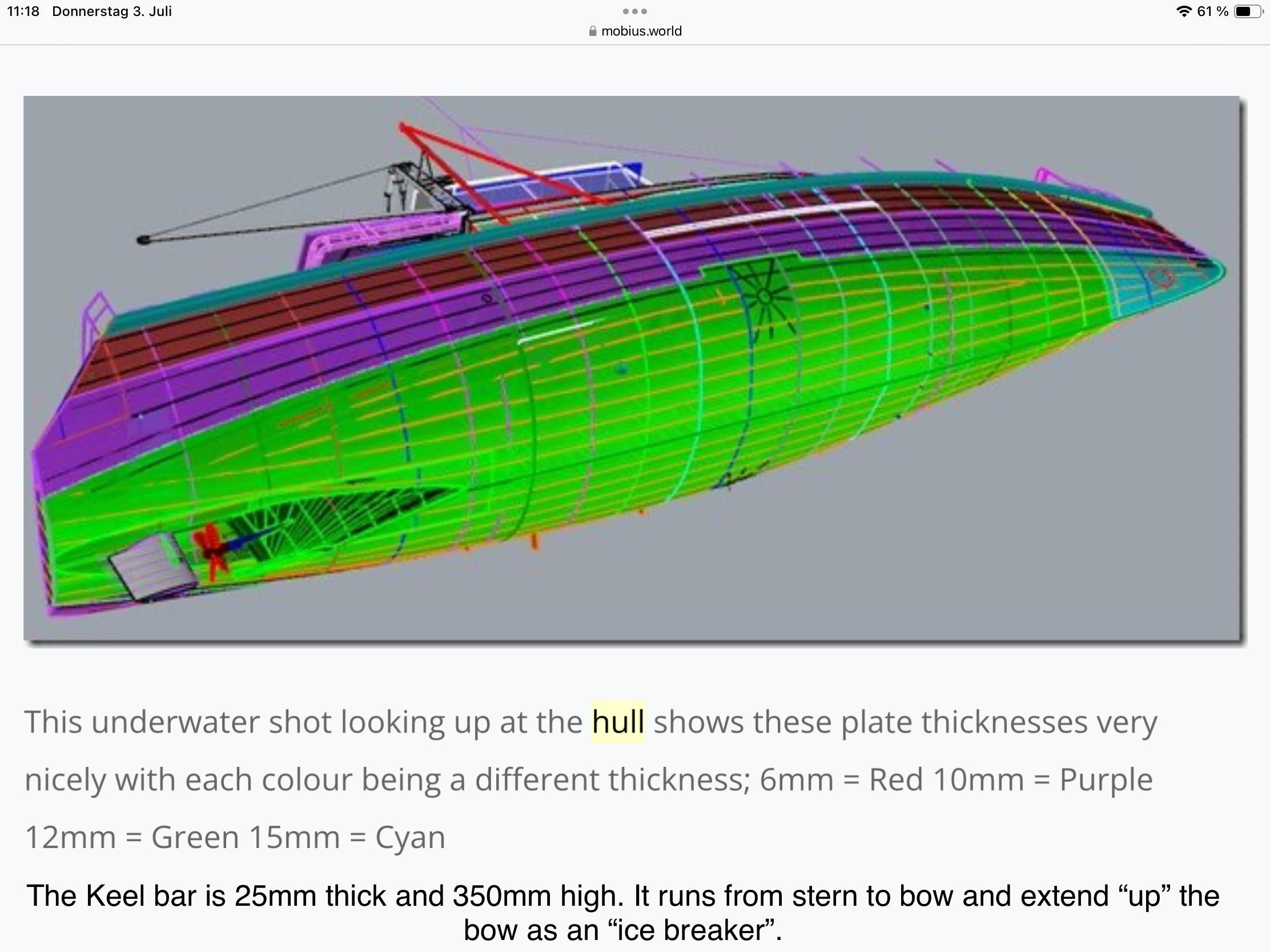

HULL:    Welded CNC cut 5086 aluminum plate

         6mm and 10mm above WL,

         12mm and 15mm below WL

BULKHEADS:  Five (5)

KEEL BAR:  25mm thick continuous aluminum plate top of Bow to the transom

FUEL + WATER TANKS:  Full Baffles, Welded Integral to Hull from WL down

PILOT HOUSE GLASS:    26mm thick Triple laminated tempered glass set integral AL frames

WT EXTERIOR DOORS (x2):  Bofor watertight aluminum doors

WT INTERIOR DOOR:  Bofor aluminum door between living areas & workshop/engine room

DECK HATCHES (x10): custom aluminum w/ double laminated tempered16mm glass

ACCESS HATCHES:  Forepeak + Engine Room: Custom aluminum hatches w/ Bofor latches and dogs

PROPULSION SYSTEM

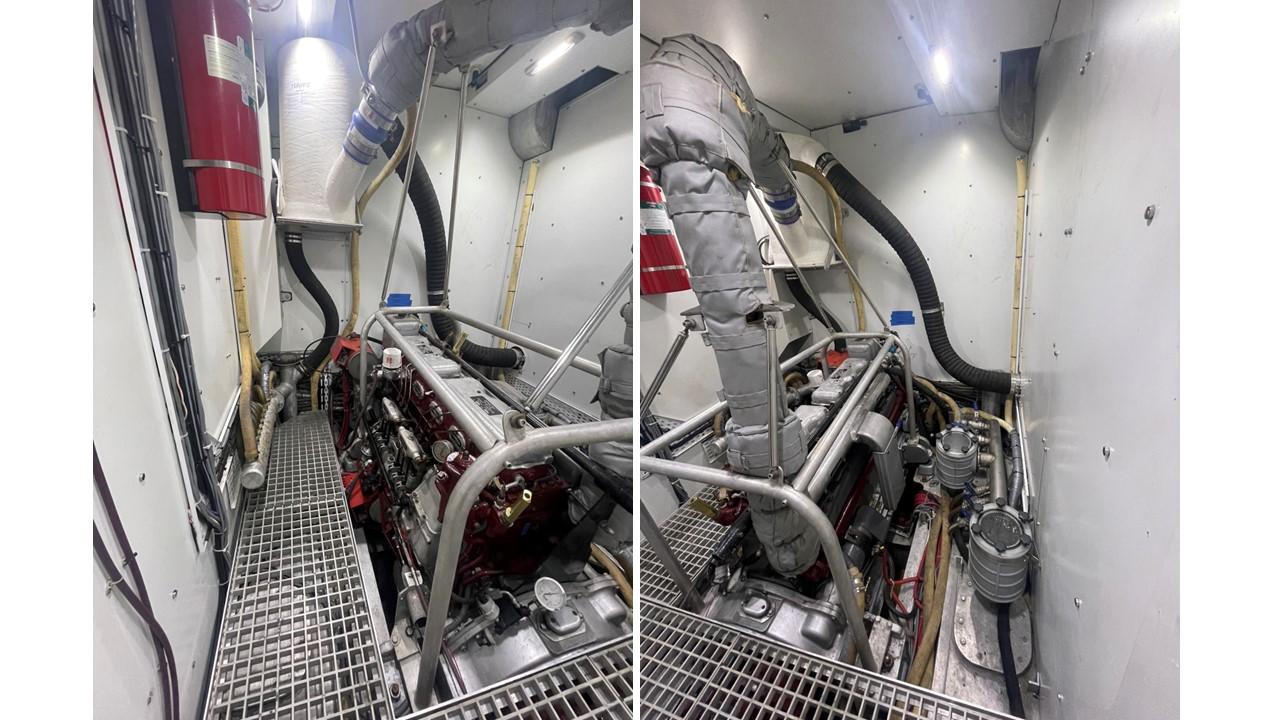

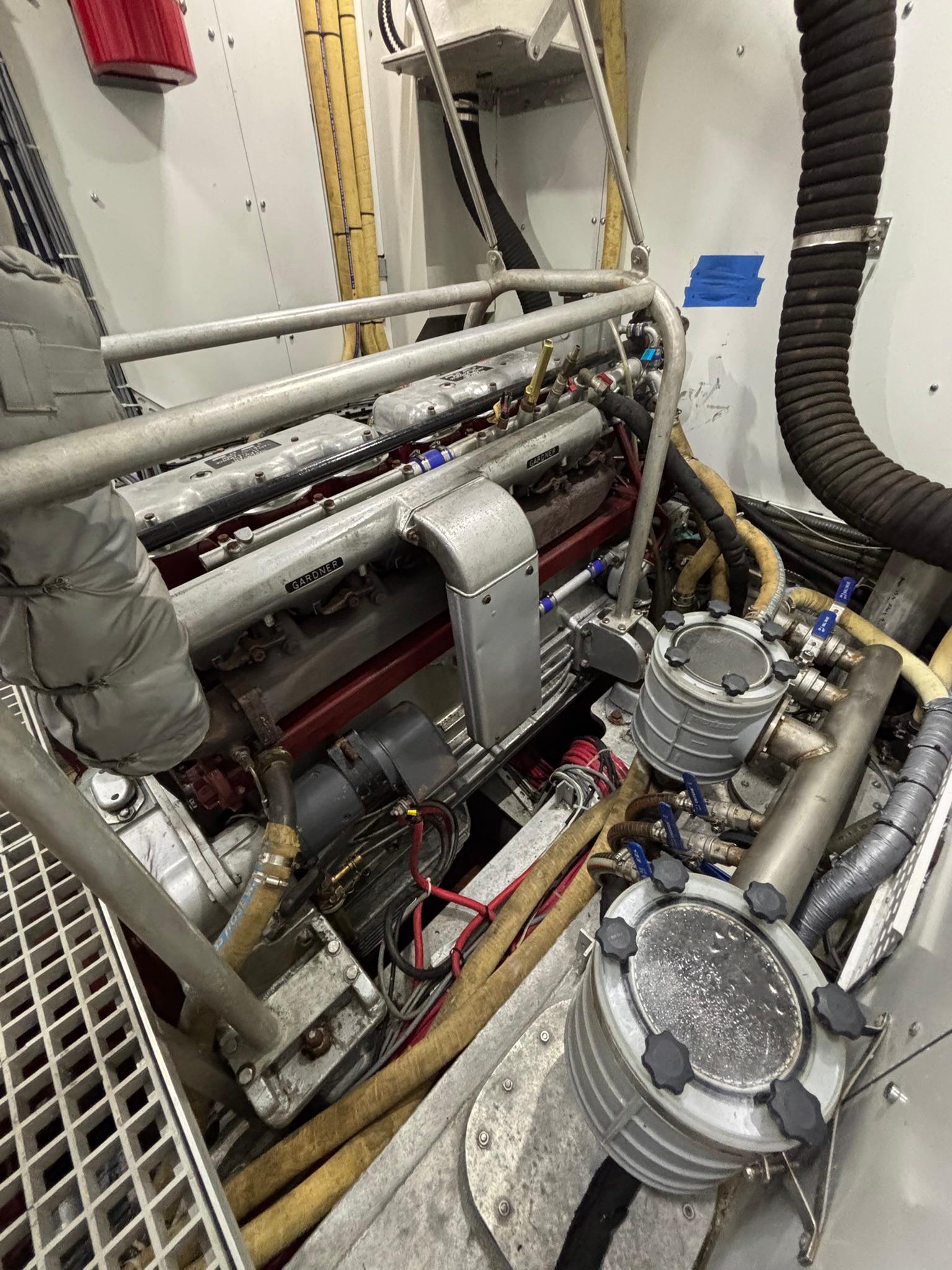

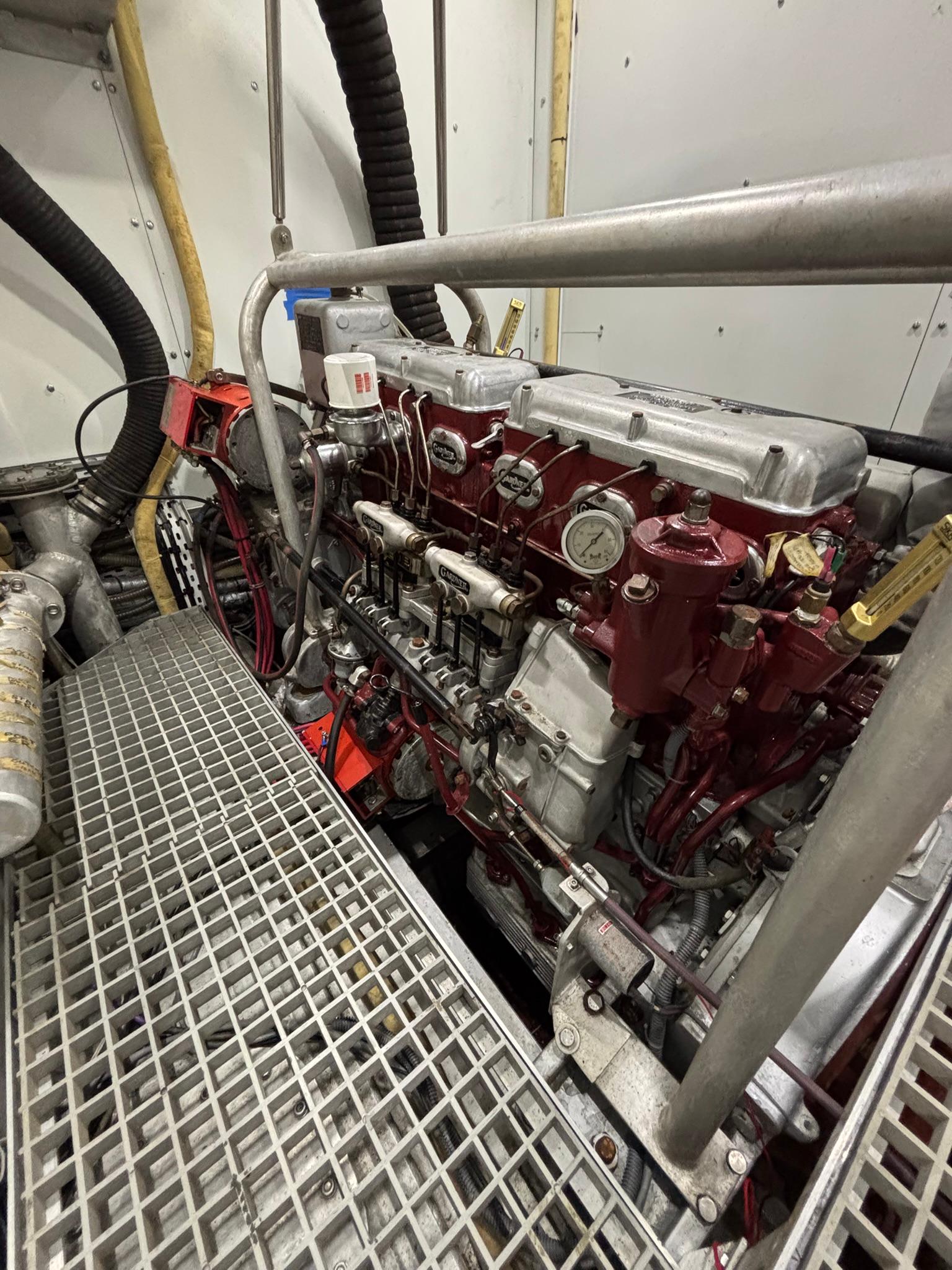

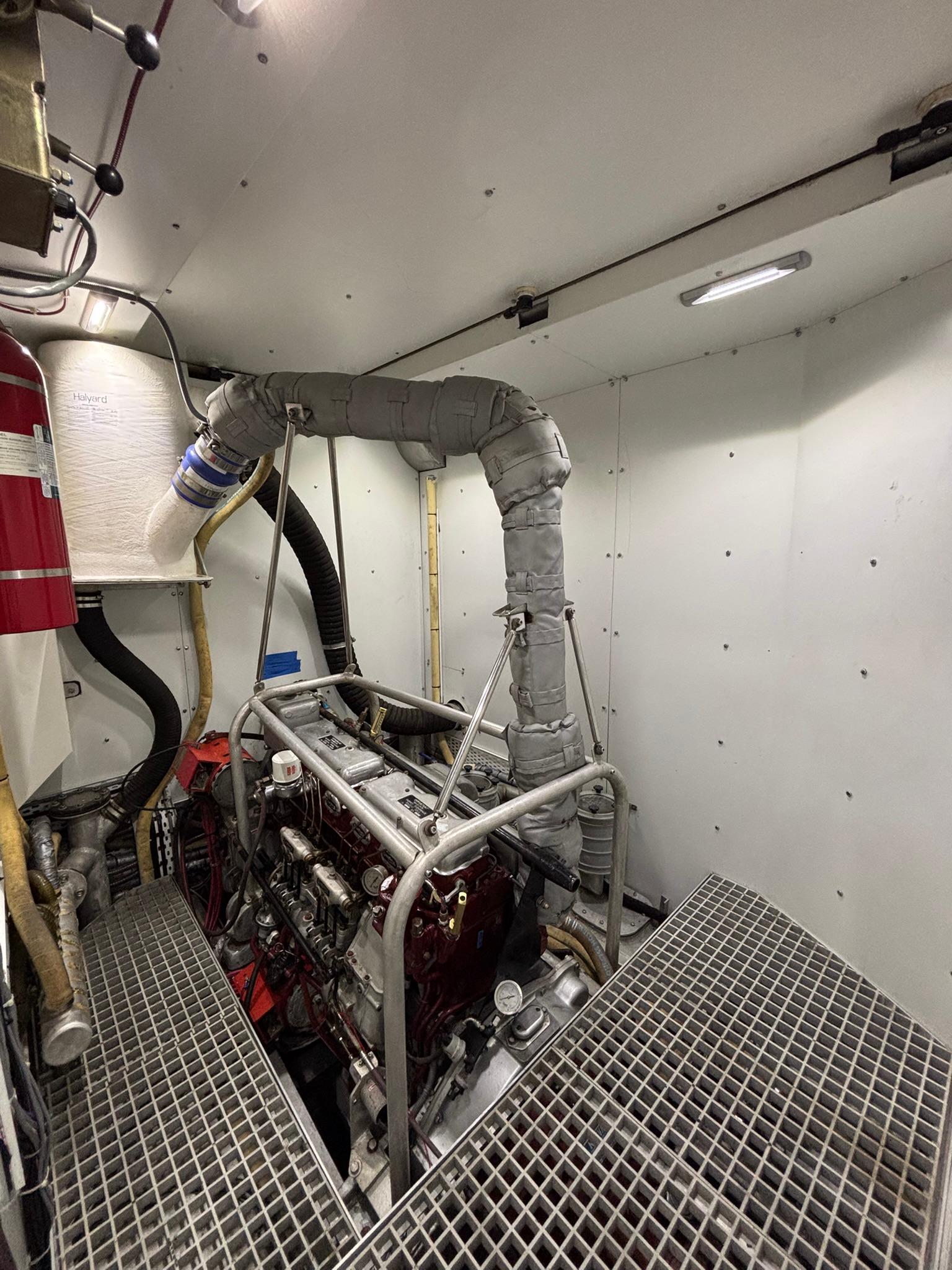

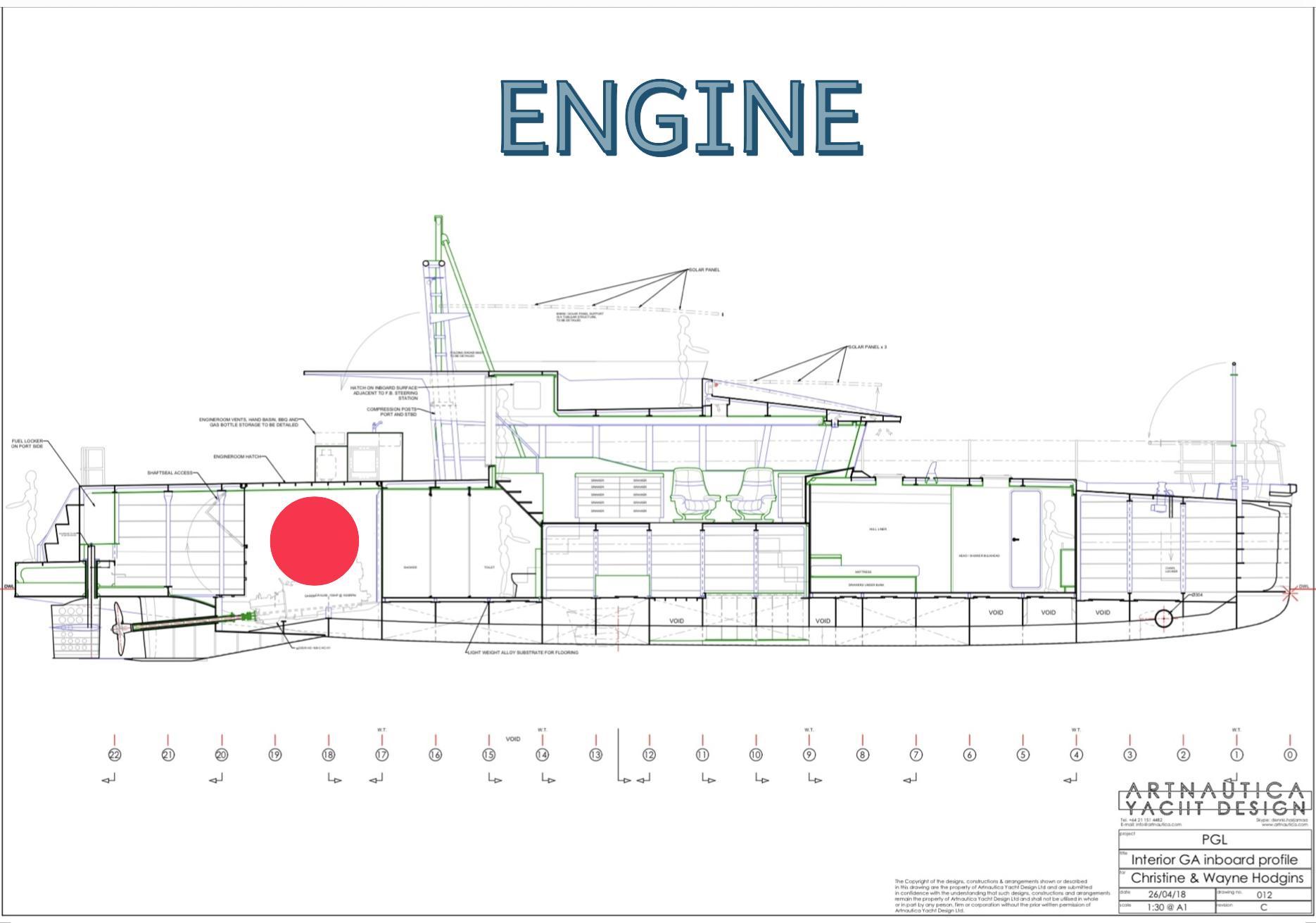

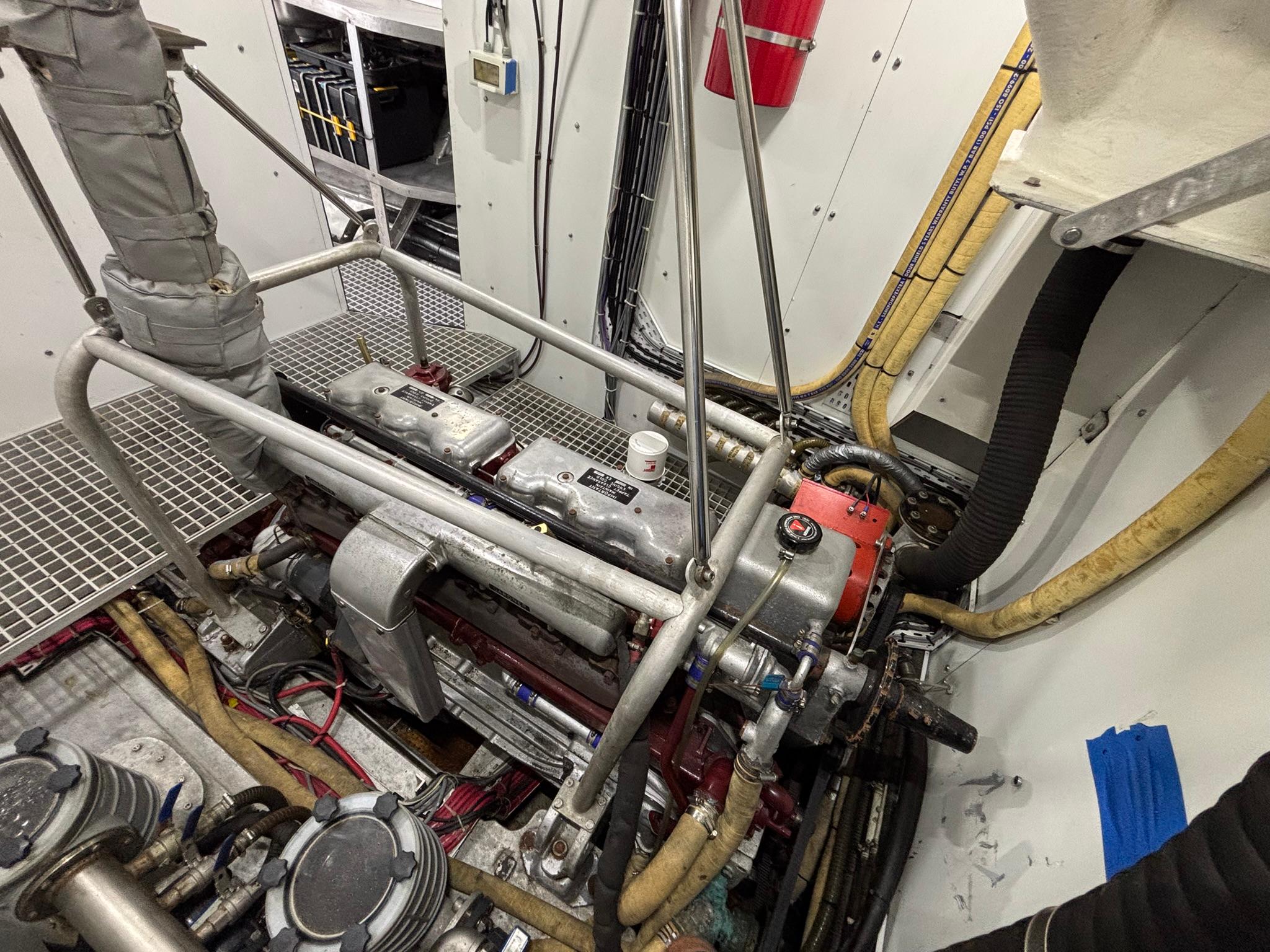

ENGINE:    Gardner 6LXB, 112 kW/150HP @ 1650 RPM 100% duty cycle 10.45 Liters,

         6 cylinder, mechanical fuel injection, naturally aspirated

ENGINE EXHAUST: Halyard wet exhaust, 3” dry stack 5” wet with combi Silencer/Water Separator

ENGINE COOLING: Bowman FG100 heat exchanger w/ Titanium coils

CPP GEAR BOX:    Nogva CPP Model HC-168  2.48:1 reduction

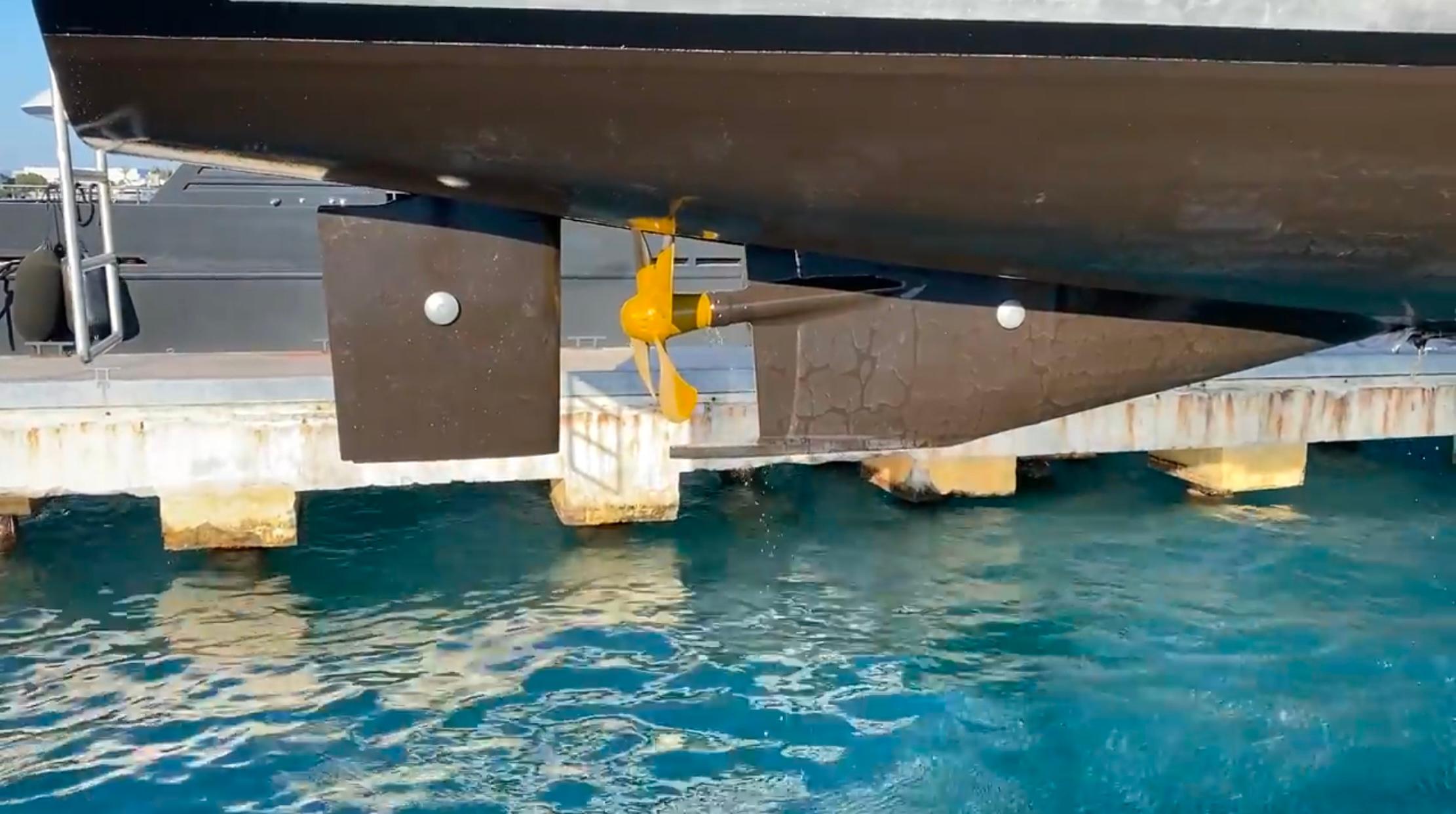

PROPELLER:    1m / 39.4”OD Nogva CPP four blade N4-215-65 mm OD prop shaft

THROTTLE + PITCH CONTROLS (x2):    Kobelt twin Elegante@ both Helm Stations

BOW THRUSTER: Vetus 22024 Extended Run Time24V 220 kGF

STEERING SYSTEMS

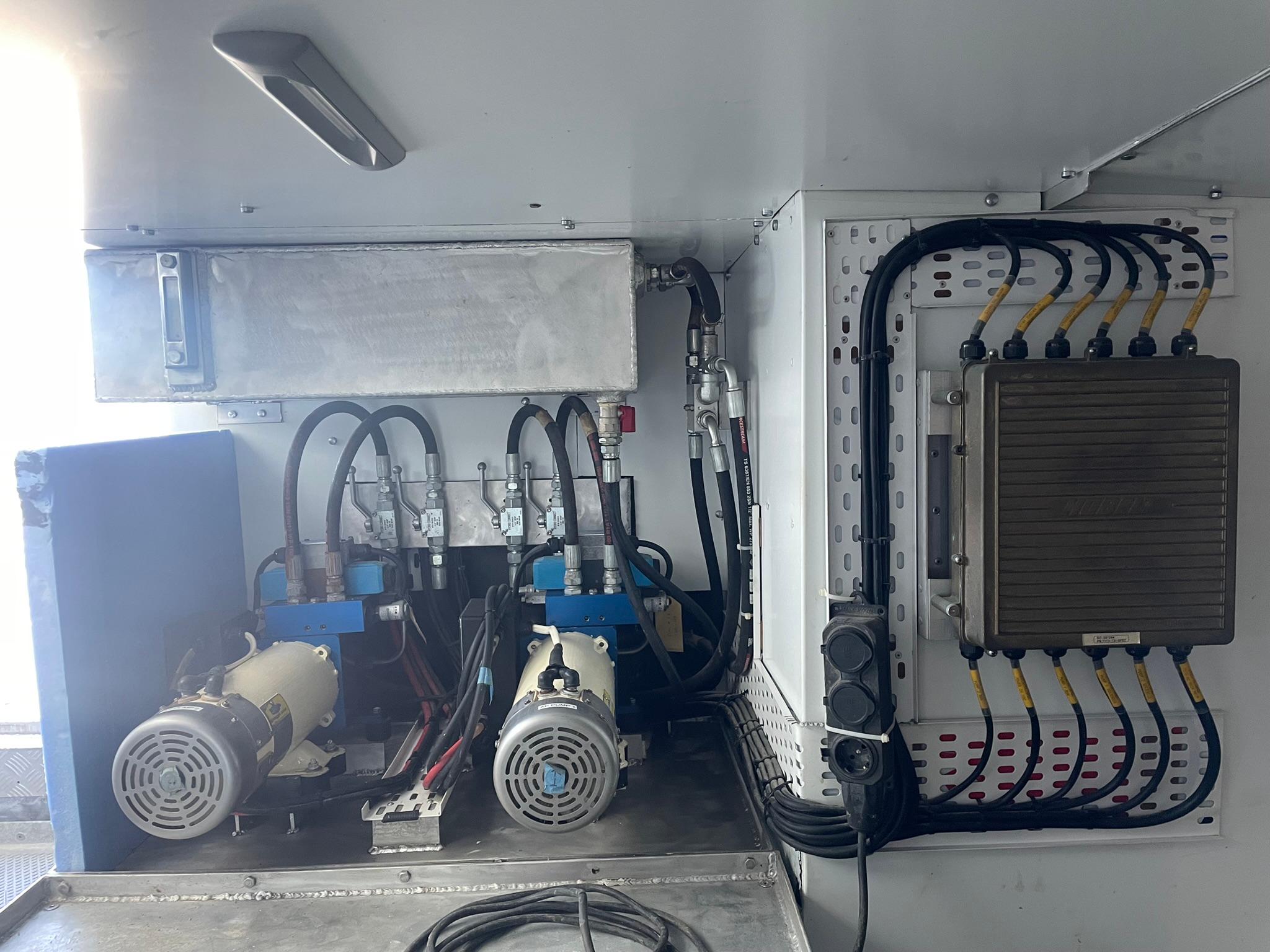

PRIMARY STEERING (x2):     Kobelt Designed dual fully redundant hydraulic systems

          2x KOBELT ACCU-STEER HPU400 PUMPS

          2x KOBELT 7080-B12 BALANCED CYLINDERS

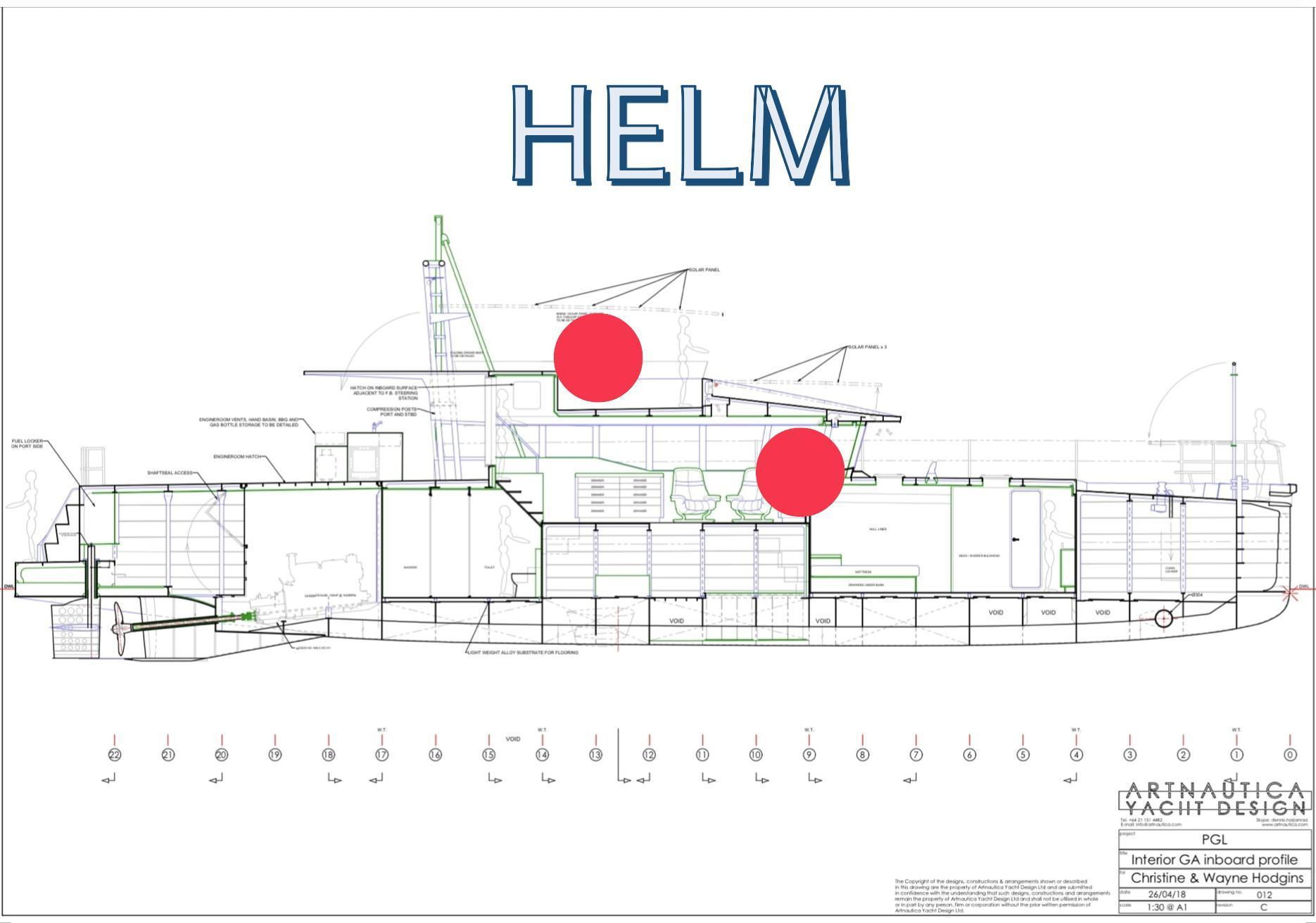

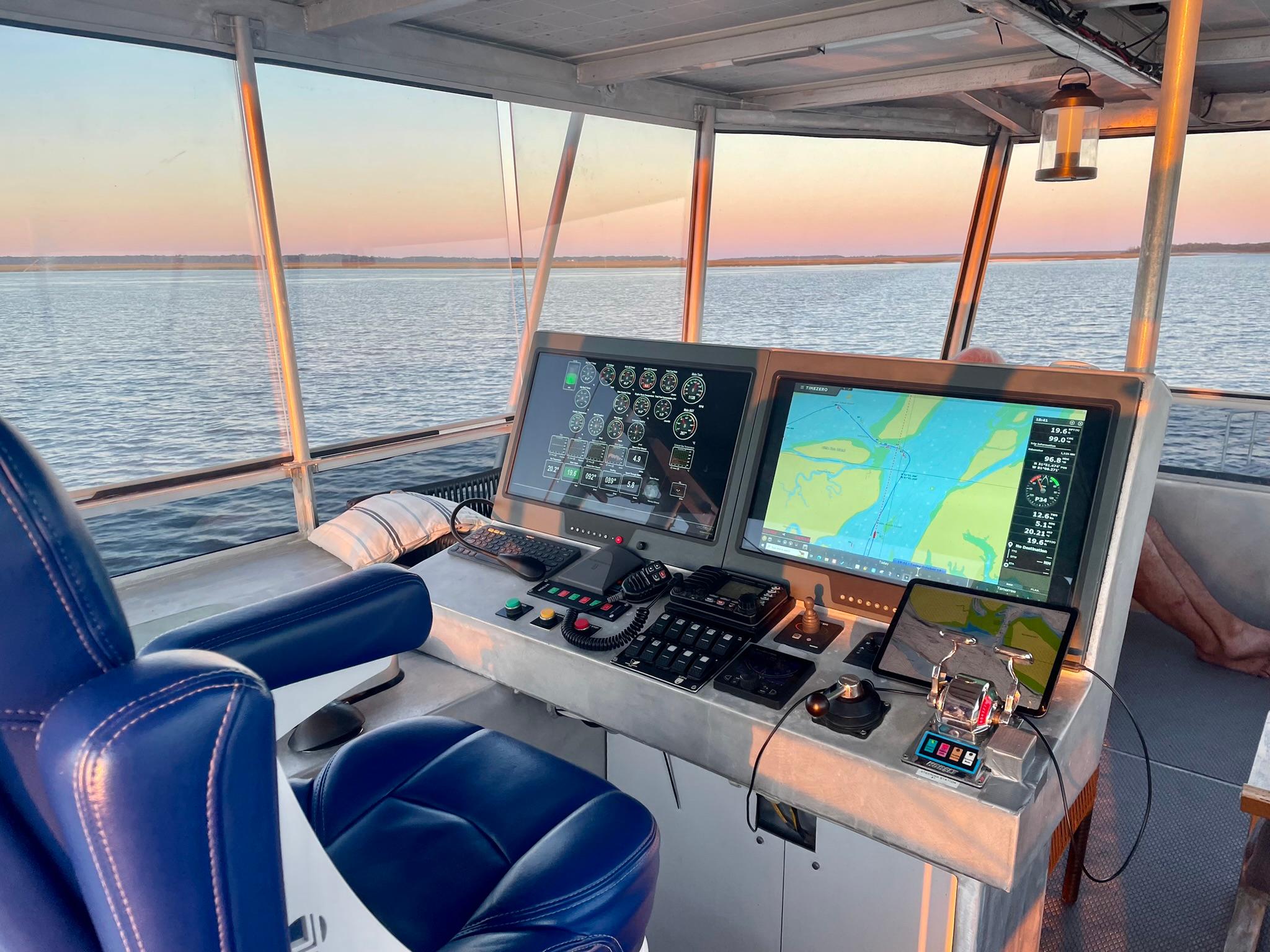

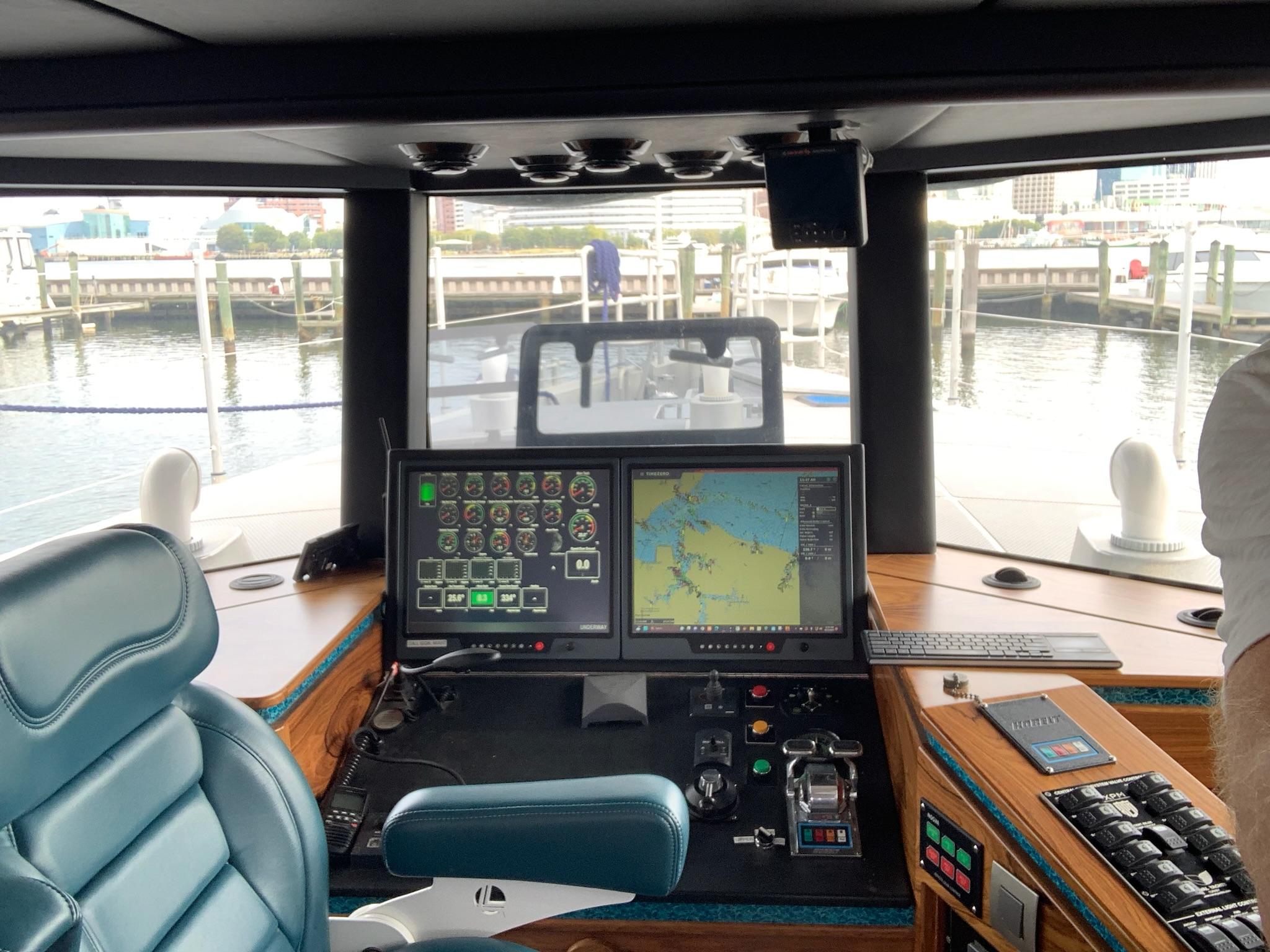

STEERING CONTROLS (x 2):     Kobelt NFU jog levers @ Main & Upper Helms

          Kobelt 7176 wired “Walk About” handheld remote station @ both Helms

AUTO PILOTS (x2):     Furuno 711C Auto Pilots,  2 independent units for redundancy

STEERING BACKUP:     Kobelt manual hydraulic pump @ Main Helm w/ steering wheel

          Emergency Tiller stored in ER, attaches direct to Tiller Arm w/ block & tackle controllers

FUEL SYSTEM

FUEL TANKS: six (6) baffled tanks integral to aluminium hull framing from WL down

FUEL CAPACITY w/o Day Tank:     13,950 L / 3685 USG

DAY TANK:     667 L / 176USG aluminium tank outside engine room

FUEL FILTRATION SYSTEM (3x):     Fleetguard 2 stage filters w/ built in WIF (Water In Fuel) detectors

FUEL POLISHING SYSTEMS: Alfa Laval MIB303 centrifuge fuel polisher

FUEL TRANSFER PUMPS (2x):     Feit gear pumps 20L/min 5.3USG/min

WATER SYSTEMS; Potable, Black, Grey

WATER TANKS (x6):     six (6) baffled AL tanks, total potable water capacity = 7090L/1873USG

          integral to aluminium hull framing from WL down

EMERGENCY BACKUP POTABLE WATER TANK:     150L polyUrethane tank

          Independent of main water system w/ dedicated faucet @ Galley Sink.

          with automated + manual engine, damper + fan shutdown controls

DOMESTIC WATER PRESSURE PUMPS (x2):     24V Aqua Jet Uno

WATER TRANSFER PUMPS (x2):     Johnson 24V Ultra Ballast Pump

WATER HEATER:     Kabola Ecoline KB-45 combi diesel boiler

          Including hydronic in-floor heating

CALORIFIER:     Webasto IsoTherm 75L/20USG, dbl heat exchanger + 230v/750w element

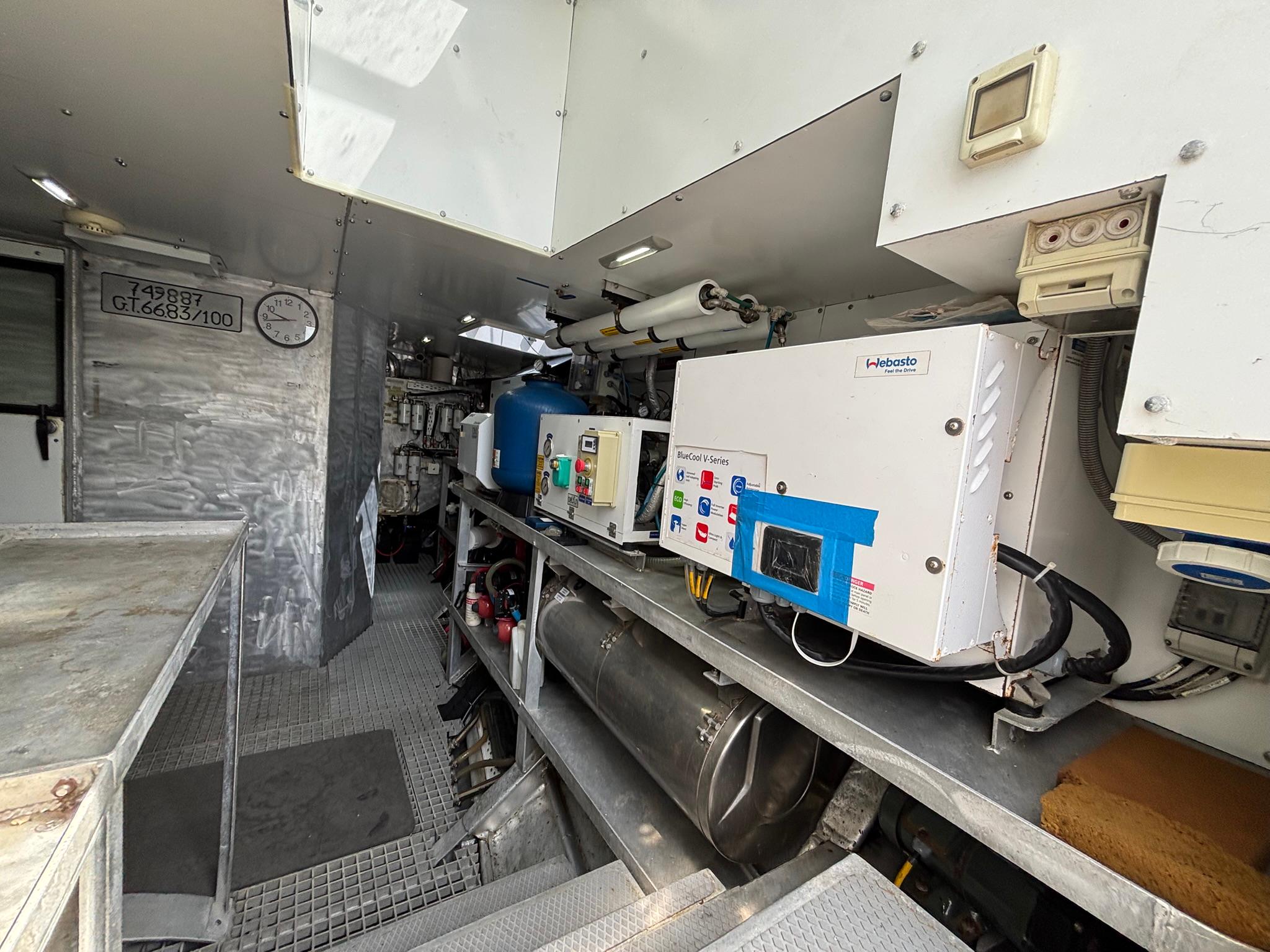

HVAC:      Webasto BlueCool V50 M 50,000 BTU w/ reverse cycle heat

          Supplies 4 Webasto air handlers; 2 @ 18,000 BTU 2@ 12,000BTU

HYDRONIC IN-FLOOR HEATING (x3):     Taco pumps one for each 3 interior zones

          each zone individually controlled by 3 Azel Switching Relay Thermostats

WATERMAKER:     Delfin Maxi 4500 200 liter per hour

BLACK WATER HOLDING TANKS (x2):     Dometic HTS-T 151L/40USG

          9.5mm thick polyethylene with 24V T series transfer pump

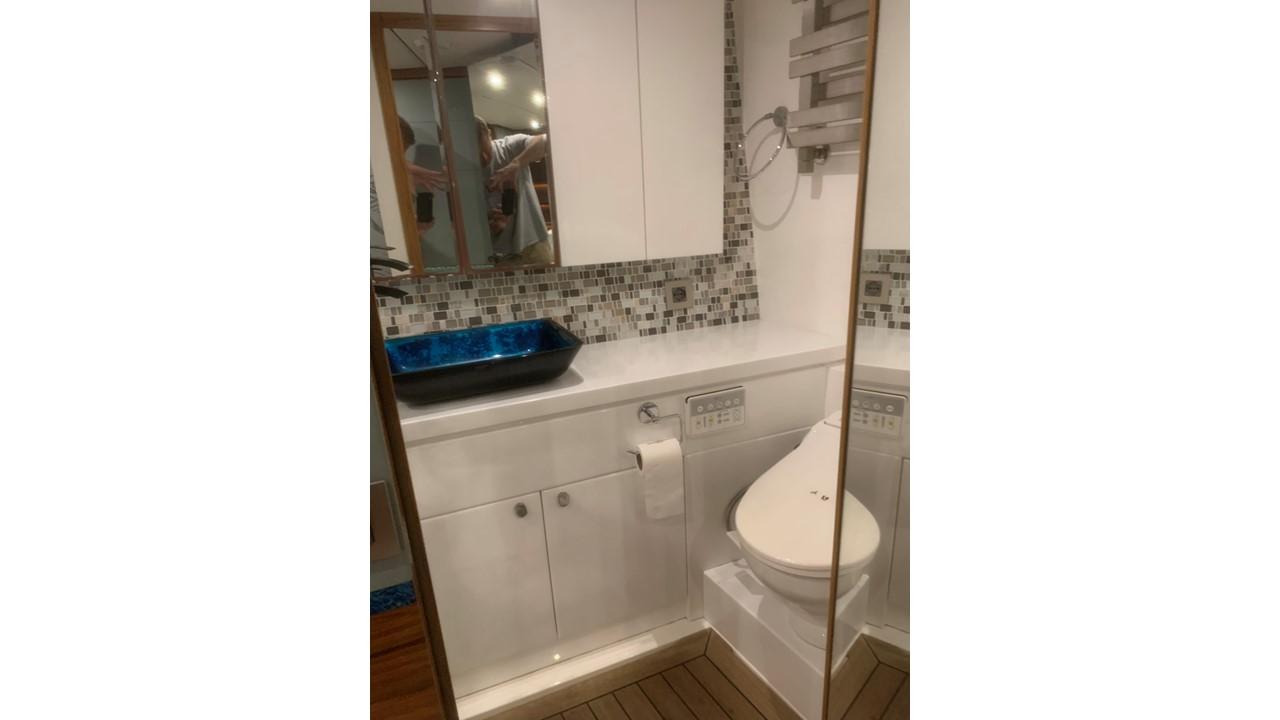

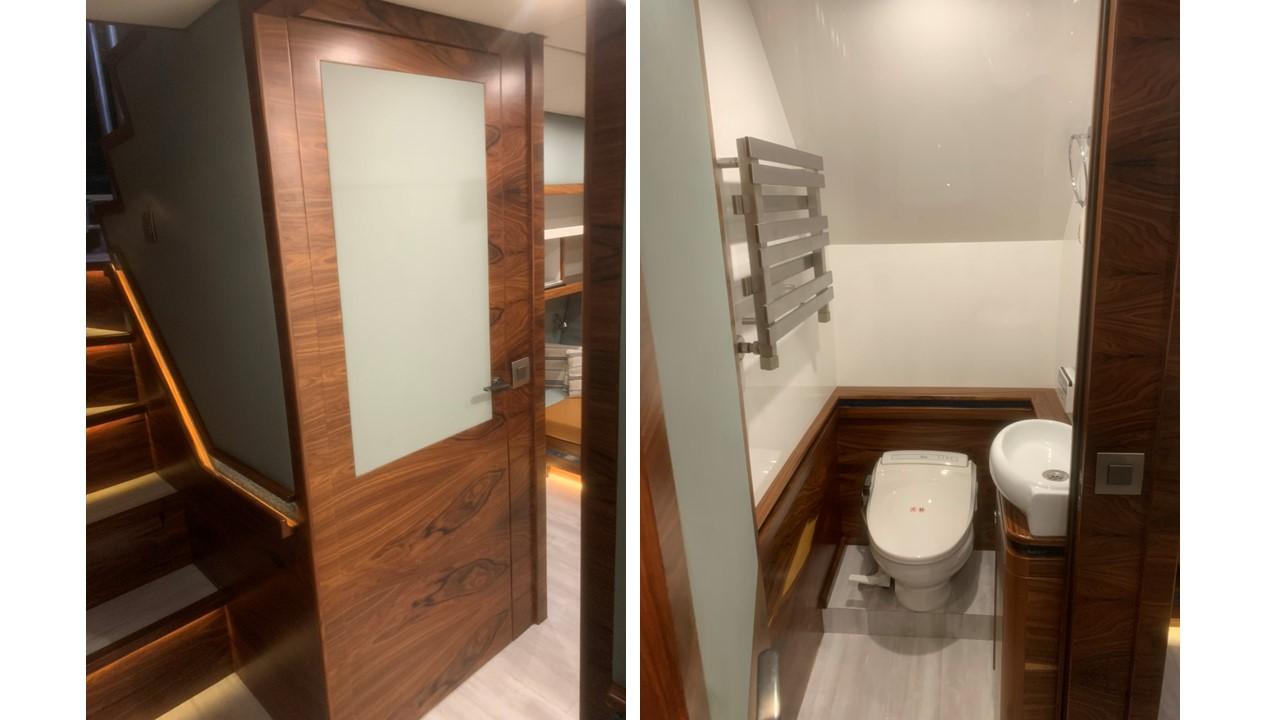

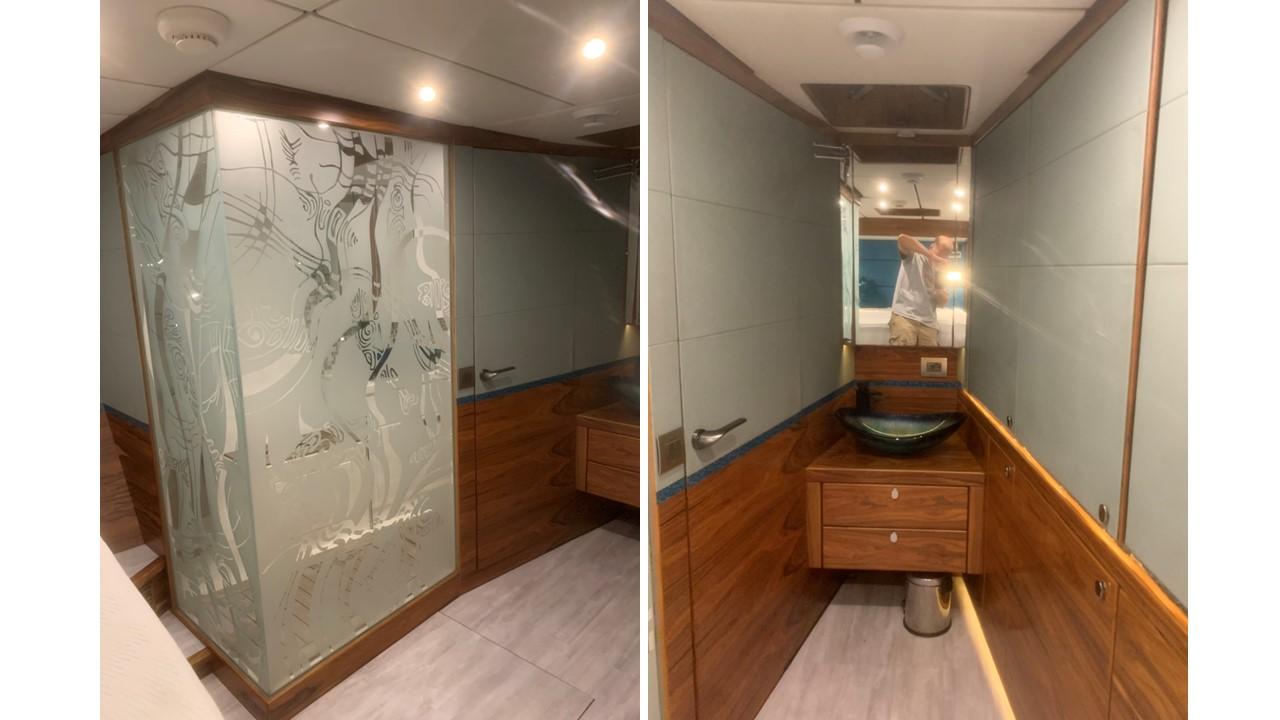

DOMETIC/VACUFLUSH TOILETS (x2):     in Guest + Master with VG4 Vacuum Generator

          Each with BioBidet BB-1000 bidet toilet seats

SWIM PLATFORM SHOWER:     Grohe w/ hot and cold mixer valve

FIRE FIGHTING SYSTEMS

FIRE EXTINGUISHING EQUIPMENT (6x):     Maus Klein wall mounted throughout

          Maus Xtin Grand-3X wall mounted outside Engine Room door

DETECTORS; SMOKE, HEAT, CO:     Maretron networked detectors In/Out all interior spaces

FIRE FIGHTING EQUIPMENT: 120 L-32 USG/min Sea water diaphragm pump

          Supplies 120L/min to fire house + nozzle stored in HazMat Locker on Swim Platform

ENGINE ROOM FIRE SUPPRESSION:     SeaFire engine room automated fire suppression system

          Using Novec 1230 fire extinguishing agent

VENTILATION SYSTEM

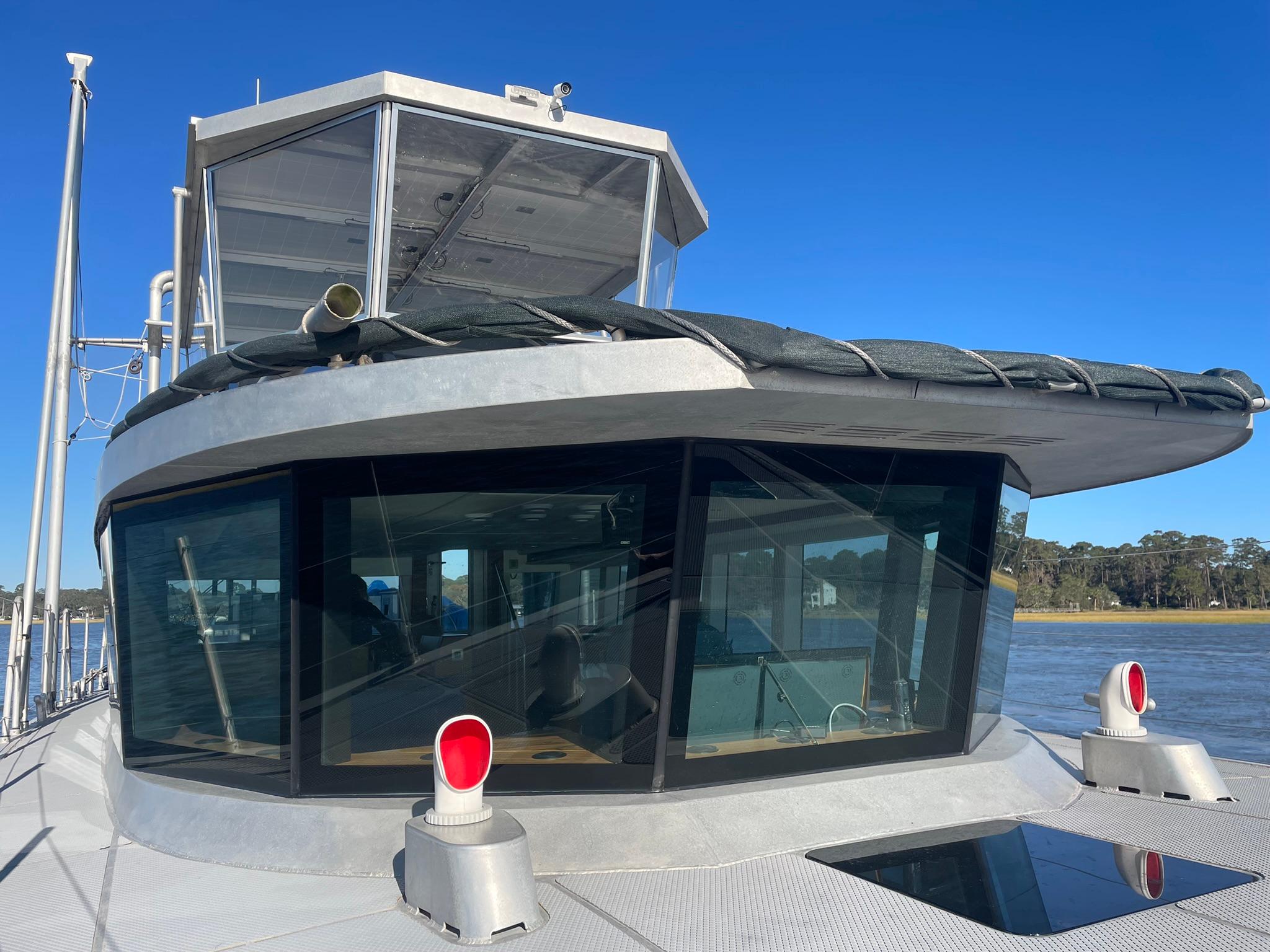

MASTER CABIN VENTILATION:     x4 Dorade Vents on Front Deck

          x2 700mm / 28” glass hatches on Front Deck

MASTER HEAD/SHOWER VENTILATION:     700mm/28” glass hatch on Front Deck

SALON VENTILATION:     x5 overhead directional ceiling vents above Main Helm

          Direct fed from high pressure zone under PH roof overhang

          x5 directional ceiling vents over middle of SuperSalon

          Direct fed from wind tunnel under hinged front solar panels

GALLEY VENTILATION (x2):     900 CFM Extraction fans both sides of Galley

GUEST CABIN VENTILATION:      700mm/28” + 450mm/18”Glass Hatch on Aft Deck

GUEST SHOWER VENTILATION:     450mm/18” Glass Hatch on Aft Deck

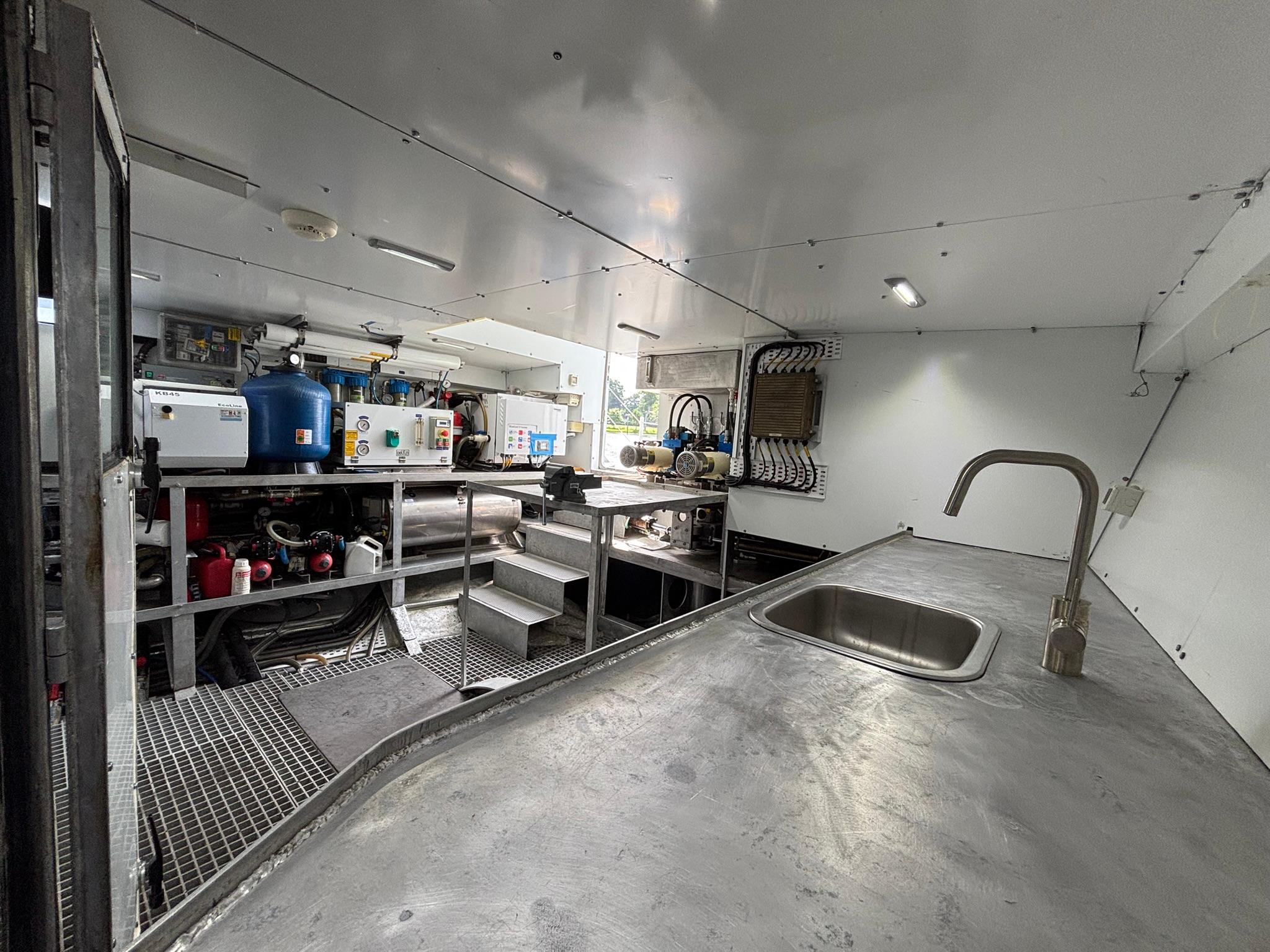

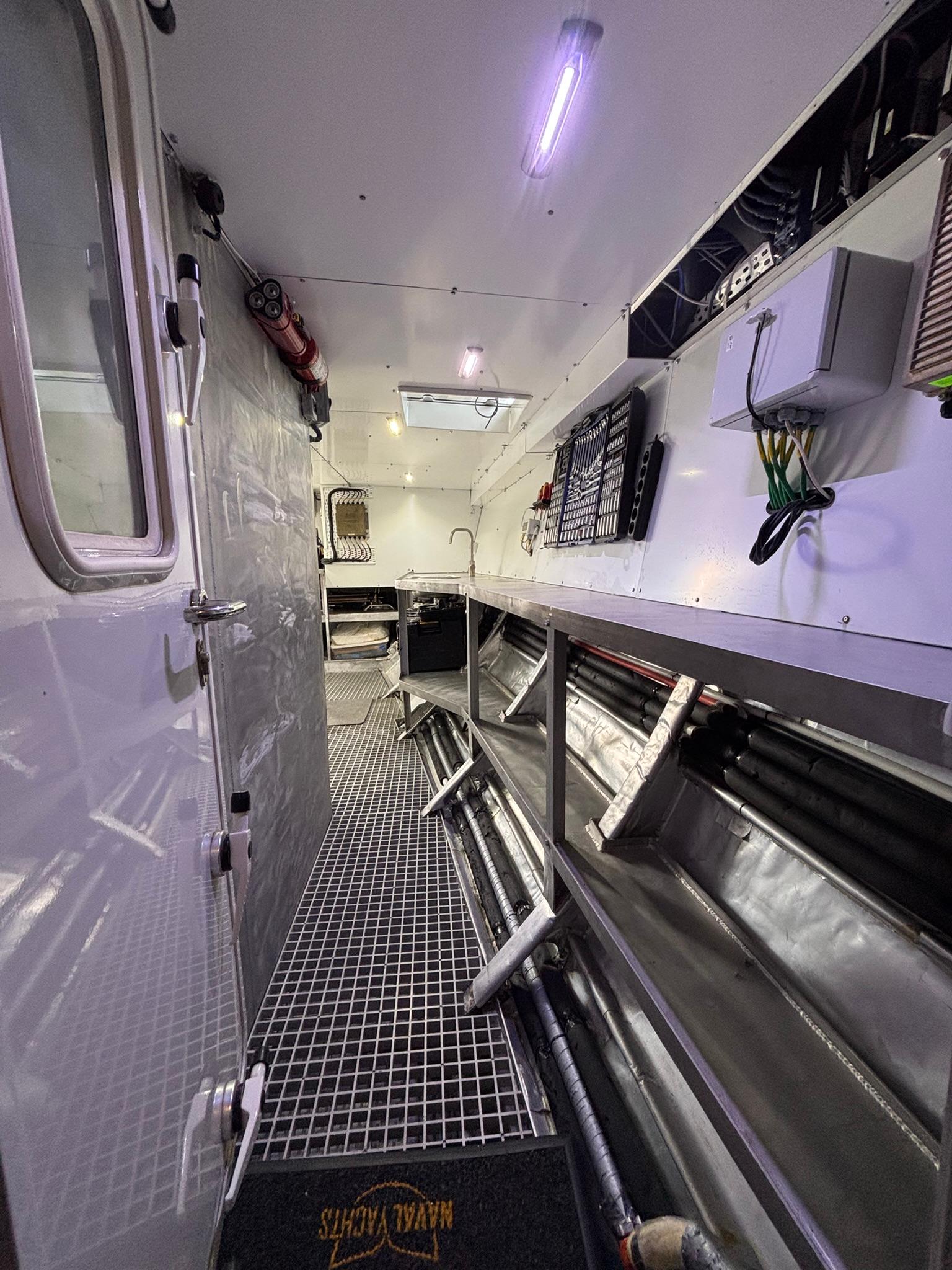

WORKSHOP VENTILATION (x2):     700mm/28” + x1 450mmm/18” Glass Hatches on Aft Deck

ENGINE ROOM VENTILATION:     Belimo 24V vent air damper activators

          with Mist Eliminators + twin 1100CFM extraction fans

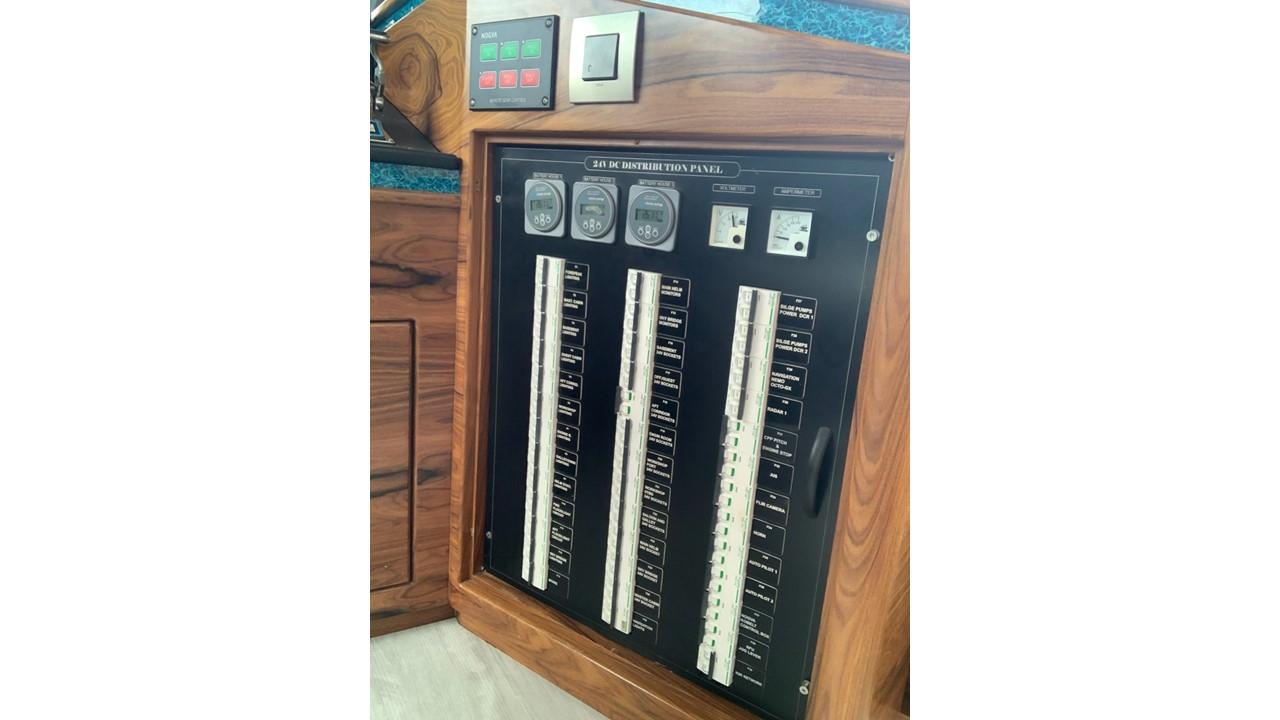

ELECTRICAL SYSTEM

HOUSE BATTERY BANK:     24V @ 1800AH = 4.32KW

          24x FireFly L15+ Carbon Foam 4volt cells

          4V cells grouped into 4 banks of 6 cells wired 6S4P

          24V ENGINE START BATTERY BANK (2x): Firefly G31 Carbon Foam 12V batteries

SOLAR PANELS (14x):     LighTec Solar Panels   11x 320W  + 3x 295W = 4.14kW

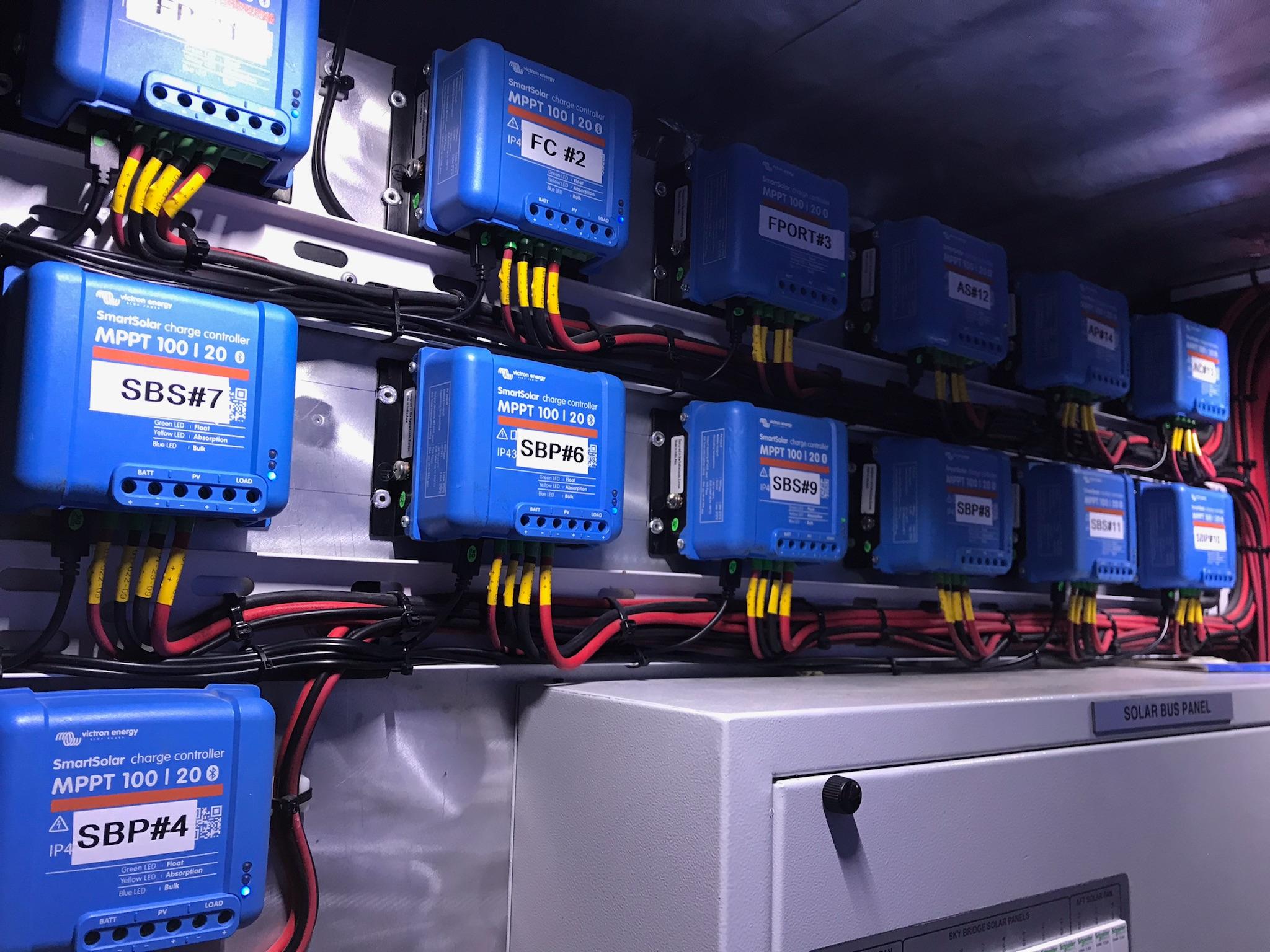

MPPT SOLAR CONTROLLERS (14x):     Victron SmartSolar MPPT 100/20

ENGINE MOUNTED ALTERNATORS (2x):     Electrodyne 250A @28V = 7kW w/ remote rectifies

SMART REGULATORS (2x):     WakeSpeed WS500

ISOLATION TRANFORMER:     Victron 3600W Autosense 115-230V

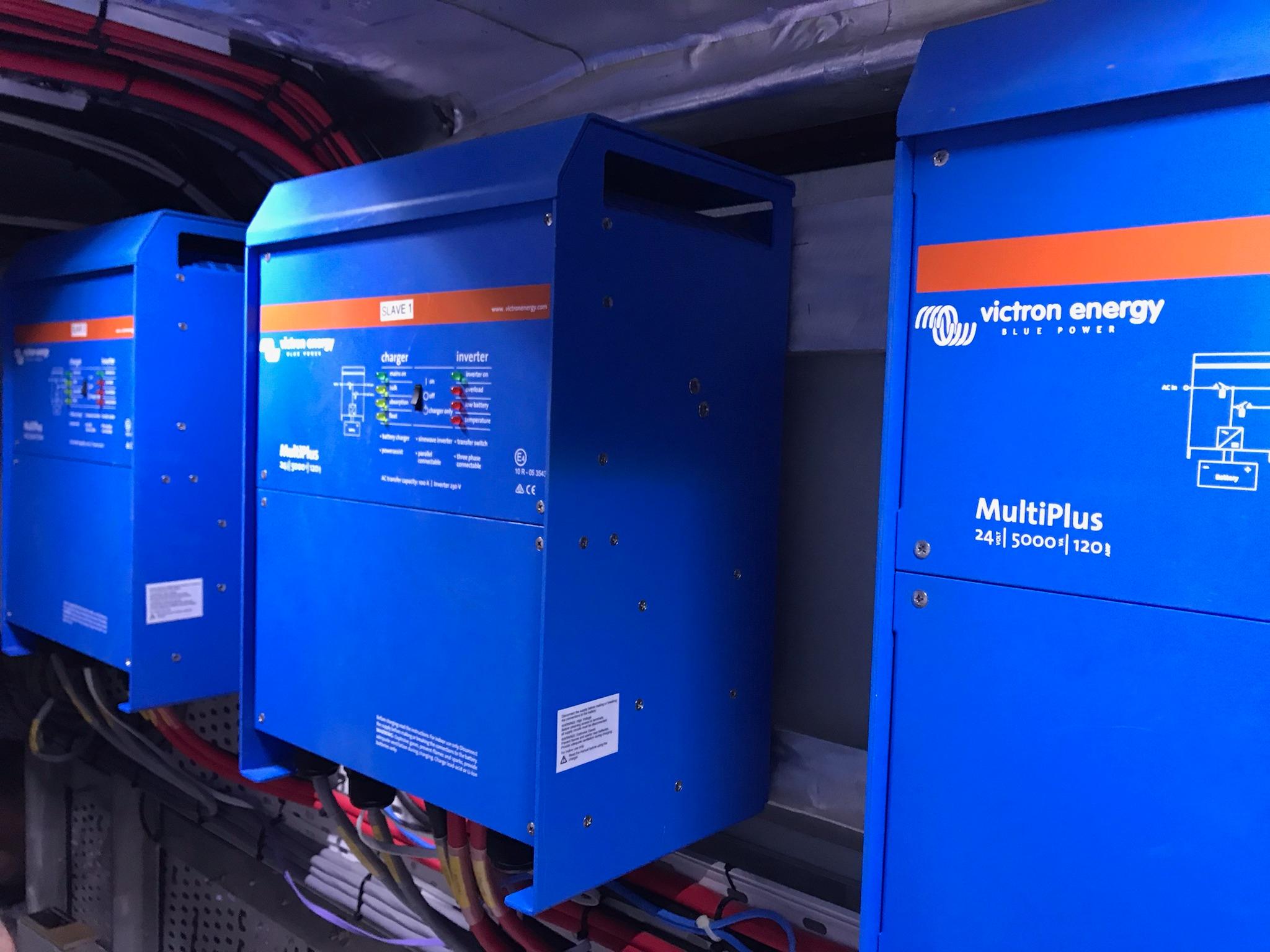

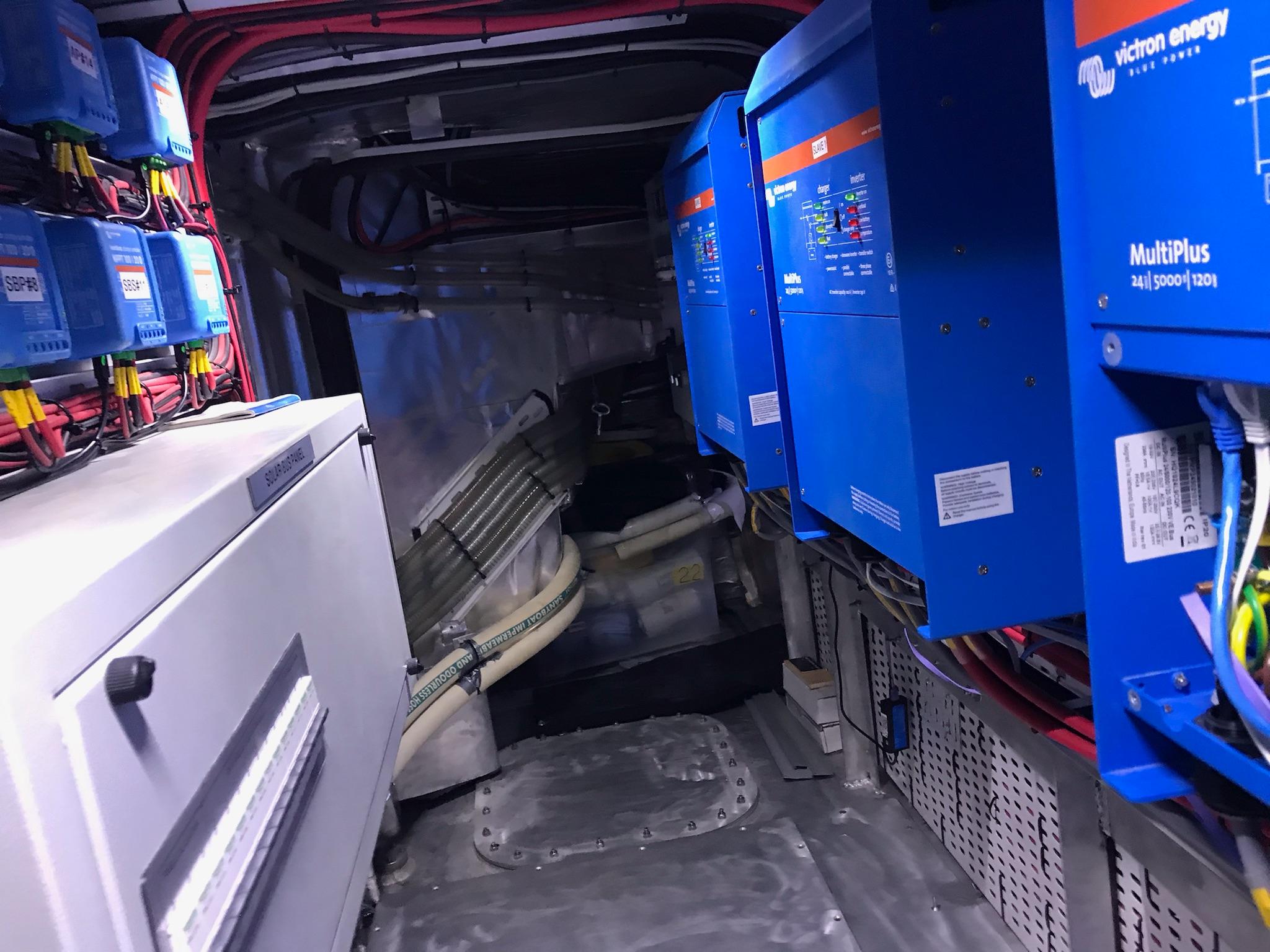

240V INVERTER/CHARGERS (3x):     Victron Multiplus 24/5000/120-100 230V

120V INVERTER/CHARGERS (2x):     Victron Multiplus 24/3000/70-50 120V

BATTERY MONITORS (3x):     Victron BMV-712 Smart Battery Monitor

BATTERY CHARGER: Victron Centaur Charger 24V@60A  Input = 95-265V 45-65Hz

DC/DC ISOLATED CHARGER (2x):     Victron Orion 24/12V @70A

SYSTEMS MONITORING:     Victron Octo GX

PANELS & SYSTEMS MONITORING:     VICTRON CERBO GX

Go to tab "Additional description" below for information on: Navigation equipment, communication equipment, deck/anchoring/mooring equipment, domestic equipment, furniture & accommodations).

The vessel is not offered for sale to US residents while in US waters.
